Voyager Star / VOYAGER STAR MSC ESC E3 SR

96548972

Data Sheet

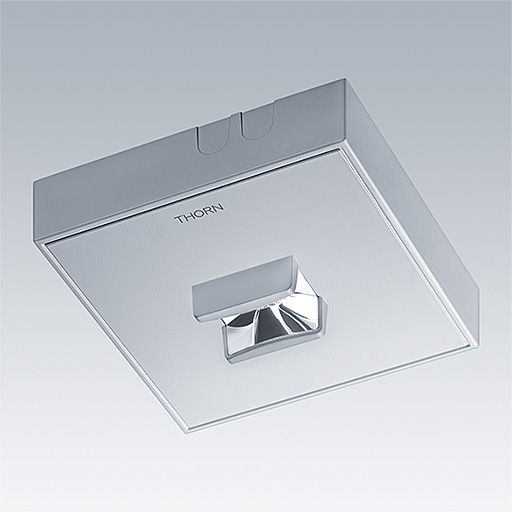

High performance, surface mounted LED emergency lighting luminaire, Self contained luminaire, manual test (3 hours) with escape route optic. Non-maintained and maintained mode settable via jumper and NFC interface. Housing: die-cast aluminium, powder coated silver grey (close to RAL 9006). Gear tray: galvanised. Lens: polycarbonate. IP40, Ceiling surface-mounted luminaire. Luminaire can be installed quickly and maintained without tools. Electrical connection (230VAC) via maximum 2.5mm² cable, loop in - loop out possible. Optimum thermal management via heat sink. Voltage supply: 220 - 240 V AC 50/60 Hz.

Total power: 4 W
Dimensions: 146 x 146 x 34 mm
Weight: 1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:113 lm
  • Total emergency luminous flux:113 lm
  • Luminaire efficacy*:28 lm/W
  • Lamp efficacy:28 lm/W
  • Rated median useful life*:50000h at 25°C
  • Ballast:1x LED_Con Tridonic
  • Luminaire input power*:4 W Power factor = 0.51
  • Standby Power*:0.9 W
  • Charging power:0.7 W
  • LED
  • CE
  • Halogenfree
  • IP40
  • Electrical class I
