Cetus / CETUS3 S 800-840 EHF RWH

96635041

Change configuration

  • Base: 96635041 — CETUS3 S 800-840 EHF RWH
  • Accessory: 96635243 — CETUS3 S UGR INSERT

Data Sheet

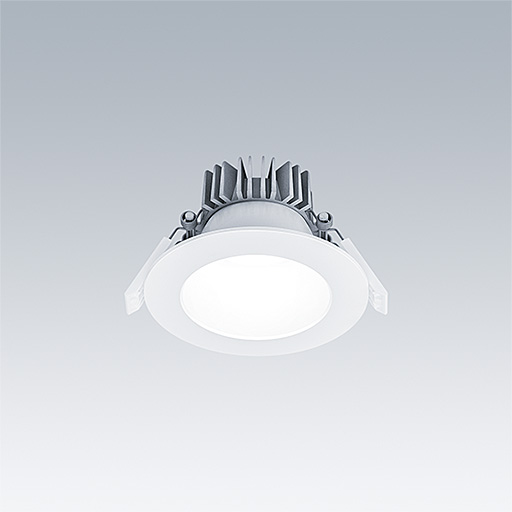

A low height, recessed LED downlight. Suitable for ceiling cut-outs Ø95-125 mm for easy refurbishments or fast initial installations. Remote, pluggable, Fixed output LED driver with DC functionality, adjustable 50-100%, NFC configurable. Loop in - loop out possible. Body: Die-cast aluminium for thermal management. Diffuser: polycarbonate, smooth reflector in finish with wide beam. Reflector and trim: high quality, highly reflective polycarbonate. Class II electrical, IP44_IP20. Spring clips suitable for ceiling thicknesses from 1 to 25 mm. Complete with 4000K LED

Dimensions: Ø137 x 80 mm
Luminaire input power: 7.8 W
Luminaire luminous flux: 794 lm
Luminaire efficacy: 102 lm/W
Weight: 0.43 kg

Equipped with:

  • An anti-glare insert for small size Cetus downlight, for improved glare control in office applications (UGR19 according to EN12464). Material: highly reflective polycarbonate. Finish: specular. Weight: 0.03 kg
Mode selection
    • CE
    • NoIsol
    • ENEC11
    • GLedReP
    • 850°
    • Halogenfree
    • IK06
    • IP44_IP20
    • LLedReP
    • RG1
    • SC2 - Protection Class 2
    • Ta= -20 to +25

    Photometry
