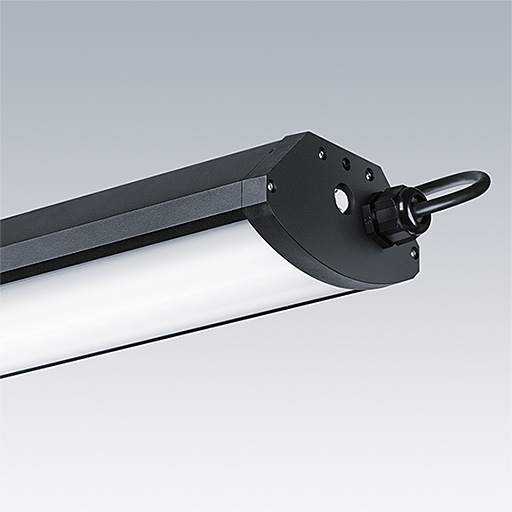

Feroz
Luminaire created to meet Transit Area applications and designed to meet all basic requirements in railway projects
- Combination in the same product of IP66, IK10 and very wide temperature range (-40°C to+50°C) for applications that need traditional moisture and impact features, however in extreme temperature environments
- Different mounting options: ceiling surface or suspended via wire or chain, vertical or horizontal wall mounting, corner mounting and suitable in unprotected outdoor areas
- Quiet, retracted and geometrical design
- Two installation types allows the installer to choose their preferred cabling method: either the luminaire can be wired through the end cap, or the luminaire can come with a versatile quick connector
- Low cost of ownership: lifetime 100,000h (25°C, L70), integrated dimming for further energy savings
- Vibration resistant, 4kV surge protection and class II fitting, making it suitable for many infrastructure and industrial applications
Materials and Finish
Body: extruded aluminium, painted black (RAL9005)
Gaskets: silicon
Diffuser: opal or clear, impact resistant UV stabilised polycarbonate
Endcaps: re-inforced (30% glass fibre and black carbon) polyamide (PA)
Endcap fixing screws: stainless steel
Installation and Mounting
Suitable for surface installation (ceiling or wall), indoors or outdoors.
New Product
LumExpress Product
eControl Product
▼ Feroz, opal diffuser
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
FEROZ LED2000-840 OP HF L600 TW | LED | 3.30 | 96630867 | ||||||
FEROZ LED2000-840 OP HF L600 TW WL3 | LED | 3.30 | 96630877 | ||||||
FEROZ LED4200-840 OP HF L1200 TW | LED | 5.15 | 96630868 | ||||||
FEROZ LED4200-840 OP HF L1200 TW WL3 | LED | 5.15 | 96630878 | ||||||
FEROZ LED8000-840 OP HF L1500 TW | LED | 6.10 | 96630869 | ||||||
FEROZ LED8000-840 OP HF L1500 TW WL3 | LED | 6.10 | 96630879 |
▼ Feroz, opal diffuser, dimmable
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
FEROZ LED4200-840 OP HFIX L1200 TW | LED | 5.15 | 96630870 | ||||||
FEROZ LED4200-840 OP HFIX L1200 TW WL5 | LED | 5.15 | 96630880 | ||||||
FEROZ LED8000-840 OP HFIX L1500 TW | LED | 6.10 | 96630871 | ||||||
FEROZ LED8000-840 OP HFIX L1500 TW WL5 | LED | 6.10 | 96630881 |
▼ Feroz, clear diffuser
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
FEROZ LED2500-840 CL HF L600 TW | LED | 3.30 | 96630862 | ||||||
FEROZ LED5400-840 CL HF L1200 TW | LED | 5.15 | 96630863 |
▼ Feroz accessories
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
FEROZ CHAIN KIT | 0.58 | 96630856 | |||||||
FEROZ CORNER KIT | 0.28 | 96630853 | |||||||
FEROZ DUST COVER 1200 KIT | 0.70 | 96630859 | |||||||
FEROZ DUST COVER 1500 KIT | 1.10 | 96630860 | |||||||
FEROZ DUST COVER 600 KIT | 0.40 | 96630858 | |||||||
FEROZ HORIZ WIRE KIT | 0.08 | 96630854 | |||||||
FEROZ SUSPENSION KIT | 0.23 | 96630857 | |||||||
FEROZ UNIVERSAL KIT | 0.28 | 96630852 |
