Omega Pro 2 / OP2 3800-927-65 CKIT+ MPT BC Q600

92915753

Data Sheet

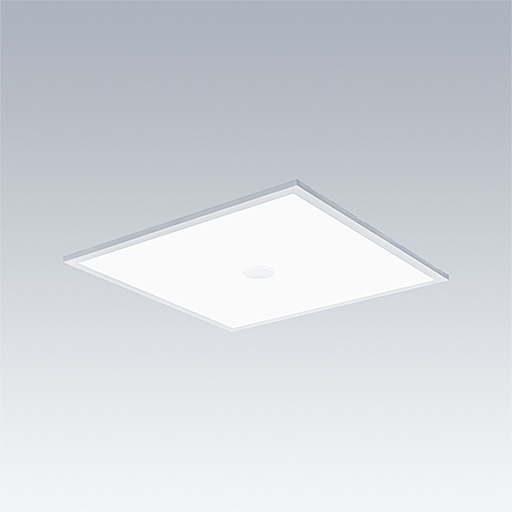

A recessed/surface/suspended, edge-lit LED luminaire. LED driver, Wireless connection via app with Bluetooth® 4.x - basicDIM Wireless. Class II electrical, IP40_IP20, Impact strength: IK03. Body: sheet steel, finished white (close to RAL9016). Diffuser: UV-stabilised polycarbonate microprismatic optic for maximised spacing with central control pod hole. Electrical connection via 7 pole piano key terminals, loop-in/loop-out possible. Complete with VCT technology (variable colour temperature), stepless tunable from 2700-6500K, DT8., Colour Rendering Index min.: 90

Radio definition: basicDIM Wireless - Bluetooth® 4.x, Radio frequency: 2.4...2.483 GHz, Radio power: +4 dBm.


Dimensions: 597 x 597 x 57 mm
Luminaire input power: 39.8 W
Luminaire luminous flux: 3800 lm
Luminaire efficacy: 95 lm/W
Weight: 5.44 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3800 lm
  • Luminaire efficacy*:95 lm/W
  • Colour Rendering Index min.:90
  • Ballast:1 x 28001909 LCA 50W 350-1050mA DT8 lp PRE
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:39.8 W Power factor = 0.97
  • Standby Power*:0.2 W
  • Dimming:BC dimmable to 10%
  • Radio definition: basicDIM Wireless - Bluetooth® 4.x
  • Radio frequency: 2.4...2.483 GHz
  • Radio power: +4 dBm
  • Maintenance category CIE 97:D - Enclosed IP2X
  • Total harmonic distortion (THD):10.39 %
  • LED
  • CE
  • Einb_NDaeMat
  • ENEC11
  • GLedNr
  • 650°
  • IK03
  • IP40_IP20
  • LLedNr
  • RG0
  • SC2 - Protection Class 2
  • Ta=0°C_to_+35°C
