Vioo / VIOO 1L120 830 L GRY

96271766

Data Sheet

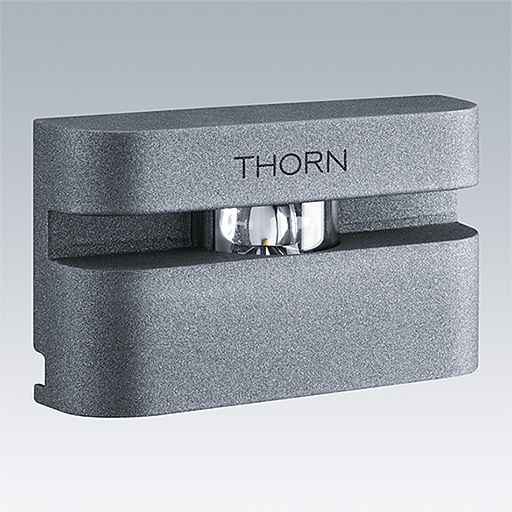

Small LED floodlight for window surround illumination. 1 LED driven at a constant 1.2A. Body: die-cast aluminium (AB47100) with high corrosion resistance, painted Light grey. Front lens: polycarbonate. Class I electrical, IP65, IK10. Pre-wired with 1,5m H05-RNF cable. Complete with 3000K LED

Dimensions: 150 x 90 x 40 mm
Luminaire input power: 4.7 W
Luminaire luminous flux: 151 lm
Luminaire efficacy: 32 lm/W
Weight: 0.71 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:151 lm
  • Luminaire efficacy*:32 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Rated median useful life*: 50000 h at 25 °C
  • Ballast:1x EL2
  • Luminaire input power*:4.7 W Power factor = 0.6
  • Dimming:FO
  • LED
  • CE
  • GLedNr
  • IK10
  • IP65
  • LLedNr
  • Electrical class I

Photometry

Photometric configuration
