Urba Bollard

  • Urba Bollard
  • Urba Bollard
  • Urba Bollard

Stylish yet robust bollard enhancing urban areas

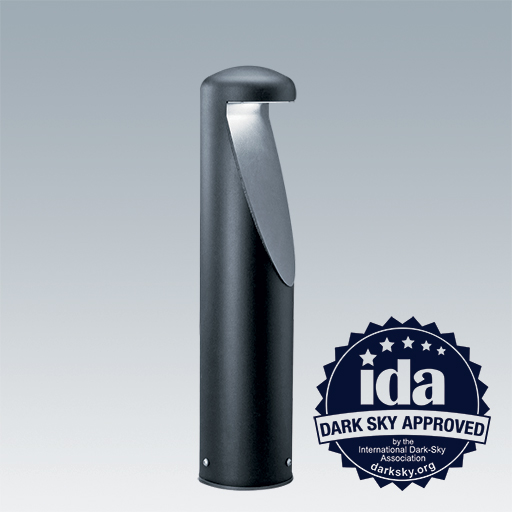

  • IDA Dark Sky Approved
  • *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered.
  • Contemporary design which is easy to integrate into urban environments
  • Robust, solid shape provides vandal resistant solution
  • A light distribution with an optimised ULOR of 0 and asymmetric optic which reduces obtrusive light and glare
  • LEDs offer low energy consumption, long lifetime and reduced maintenance

Materials and Finish

Body and bezel: low carbon steel SS1142 : SS-EN 10130 material DC01. Cataphoresis treatment.
Diffuser: clear 5mm polycarbonate plate
Body and bezel colours: black (RAL 9005)

Installation and Mounting

Flange mounted. 500m root to be fixed into concrete base. 800mm root to be fixed into the ground. Access door for connection box (not provided).

New Product
LumExpress Product
eControl Product

Urba Body

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA BOLLARD 4L105 730 CL2151009LED12.9096275588
URBA BOLLARD 4L105 740 CL2151107LED12.8096275590

Urba Base

Description   Wt (kg)SAP Code
URBA BOLLARD BASE MGR 5006.3596275593
URBA BOLLARD BASE MGR 8009.5096275594
URBA BOLLARD BASE MPL2.4096275592
