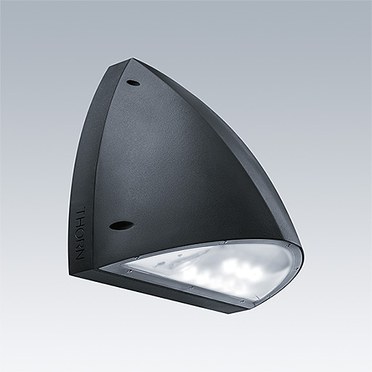

Piazza II LED

  • Piazza II LED
  • Piazza II LED

A robust IP65 outdoor wall mounted luminaire with a unique light distribution, ideal for building perimiter applications

  • IDA Dark Sky Approved
  • *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered.
  • Unique photometrics with 3 metre forward light throw and 12 metre spacing - ideal for perimeter walkways
  • Very low upward light throw with less than 2.5% ULOR
  • Excellent 116 lm/W efficiency
  • Easy installation, back mounted, BESA and surface mounted conduit compatible

Materials and Finish

Back-plate: die-cast aluminium painted anthracite (RAL7016)
Body: polycarbonate In anthracite colour (RAL 7016)
Diffuser: textured clear polycarbonate

Installation and Mounting

Wall mountable. Ø20 mm cable entry via rear or side conduit entries. Recommended 3-4 metre mounting height.

New Product
LumExpress Product
eControl Product

Piazza II LED

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
PIAZZA II LED 1690-830 HF ANT151815LED2.8096632757
PIAZZA II LED 1690-830 HF P ANT151815LED2.8096632758
PIAZZA II LED 1690-840 HF ANT151844E7716015LED2.8096666256
PIAZZA II LED 1690-840 HF P ANT151844E7716016LED2.8096666259
PIAZZA II LED 2700-830 HF ANT252736LED2.8096632759
PIAZZA II LED 2700-830 HF P ANT252736LED2.8096632760
PIAZZA II LED 2700-840 HF ANT252910E7716018LED2.8096666261
PIAZZA II LED 2700-840 HF P ANT252910E7716019LED2.8096666264

Piazza II LED, emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
PIAZZA II LED 1690-840 HF E3 ANT151844LED3.1096666257
PIAZZA II LED 1690-840 HF E3TX ANT151844LED3.1096666258
PIAZZA II LED 2700-840 HF E3 ANT252910LED3.1096666262
PIAZZA II LED 2700-840 HF E3TX ANT252910LED3.1096666263

Piazza II LED, dimmable

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
PIAZZA II LED 1690-840 HFI-X EC ANT151844E7716017LED2.8096666260
PIAZZA II LED 2700-840 HFI-X EC ANT252910E7716020LED2.8096666265
