  • Chalice — CHAL 200 LED1400-830 HF RSB

Chalice / CHAL 200 LED1400-830 HF RSB

96629019

▶Change configuration

  • Base: 96629019 — CHAL 200 LED1400-830 HF RSB

▼ Data Sheet

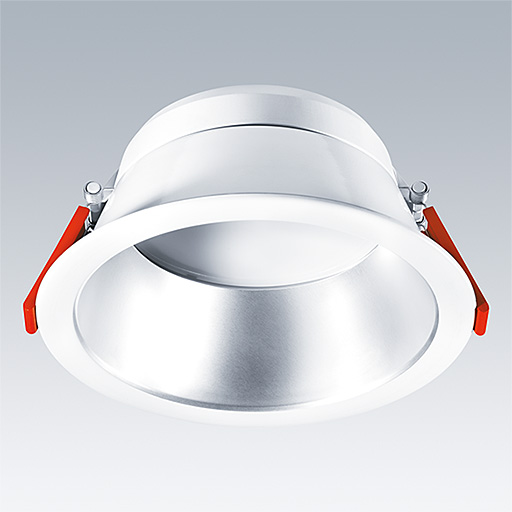

A recessed LED downlight. Remote fixed output control gear. IP54 (IP20 from above), Class II electrical. Body: aluminium, painted white (RAL 9016). Reflector: satinbrite. Suitable for mounting in ceiling thicknesses of 1-40mm in a Ø200mm cut-out. Complete with 3000K LED.

Dimensions: Ø220 x 94 mm
Luminaire input power: 13.2 W
Luminaire luminous flux: 1370 lm
Luminaire efficacy: 104 lm/W
Weight: 0.91 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1370 lm
  • Luminaire efficacy*:104 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 00154561 DRV FP LC 20W 500mA 40V F #FY-5914-1 CSR
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000h at 25°C
  • Luminaire input power*:13.2 W Power factor = 0.95
  • Dimming:FO
  • Maintenance category:C - Closed Top Reflector
  • LED
  • CE
  • NoIsol
  • ENEC11
  • GLedReP
  • 850°
  • IK03
  • IP54-IIP20
  • LLedReP
  • SC2 - Protection Class 2
  • Ta=25

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
