Chalice Pro / CHAL PRO LED1100-840 BC RMB W6

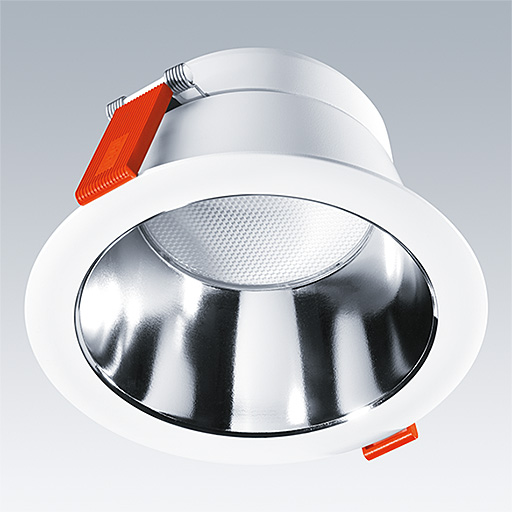

A recessed LED downlight. Remote dimmable control gear, Wireless connection via app with Bluetooth® 4.x - basicDIM Wireless , (installation in metal or concrete ceilings or MSF housing not permitted). Luminaire arrangement: Mobile control to luminaire max. 15 m, luminaire  to luminaire max. 4 m. IP54 (IP20 from above), Class I electrical. Body: aluminium, painted white (RAL 9016). Reflector: mirrorbrite. Suitable for mounting in ceiling thicknesses of 1-40mm in a Ø150mm cut-out. Complete with 4000K LED.

Radio definition: basicDIM Wireless - Bluetooth® 4.x, Radio frequency: 2.4...2.483 GHz, Radio power: +4 dBm

Dimensions: Ø172 x 94 mm
Luminaire input power: 8.8 W
Luminaire luminous flux: 1100 lm
Luminaire efficacy: 125 lm/W
Weight: 0.57 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:1100 lm
• Luminaire efficacy*:125 lm/W
• Colour Rendering Index min.:80
• Ballast:1 x 06890226 DRV TC PROF 38W 1.05A 54V D #CASAMBI
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L90 50000h at 25°C
• Luminaire input power*:8.8 W Power factor = 0.95
• Standby Power*:0.2 W
• Dimming:BC dimmable to 1%
• Radio definition: basicDIM Wireless - Bluetooth® 4.x
• Radio frequency: 2.4...2.483 GHz
• Radio power: +4 dBm
• Maintenance category:C - Closed Top Reflector
