  • Chalice Pro — CHAL PRO LED2000-927-65 HFIX RSB

Chalice Pro / CHAL PRO LED2000-927-65 HFIX RSB

96633614

▶Change configuration

  • Base: 96633614 — CHAL PRO LED2000-927-65 HFIX RSB

▼ Data Sheet

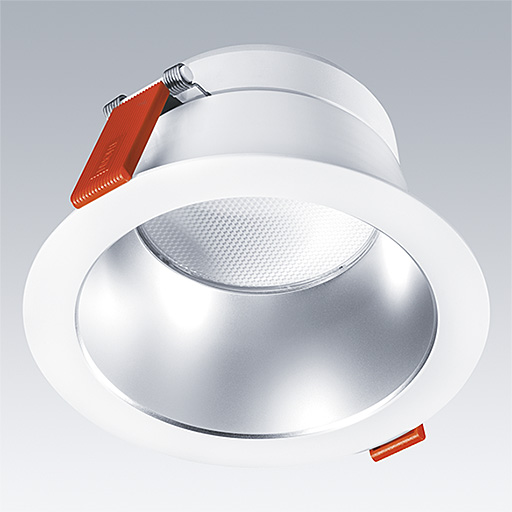

A recessed LED downlight. Remote DALI dimmable control gear. IP54 (IP20 from above), Class I electrical. Body: aluminium, painted white (RAL 9016). Reflector: satinbrite. Suitable for mounting in ceiling thicknesses of 1-40mm in a Ø150mm cut-out. Complete with VCT technology (variable colour temperature), stepless tunable from 2700-6500K..

Dimensions: Ø172 x 94 mm
Luminaire input power: 29 W
Luminaire luminous flux: 2000 lm
Luminaire efficacy: 69 lm/W
Weight: 0.61 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2000 lm
  • Luminaire efficacy*:69 lm/W
  • Colour Rendering Index min.:90
  • Ballast:1 x 28002202 LCA 38W 350-1050mA DT8 SR PRE
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000h at 25°C
  • Luminaire input power*:29 W Power factor = 0.95
  • Standby Power*:0.2 W
  • Dimming:DA2 dimmable to 10%
  • Maintenance category:C - Closed Top Reflector
  • Total harmonic distortion (THD):9.31 %
  • LED
  • CE
  • NoIsol
  • GLedReP
  • 850°
  • IK03
  • IP54-IIP20
  • LLedReP
  • SC2 - Protection Class 2
  • Ta=25

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
