  • Cesar Amp Ceiling — CESAR AMP S CEI 1L930WB RD GY

Cesar Amp Ceiling / CESAR AMP S CEI 1L930WB RD GY

96701220

▼ Data Sheet

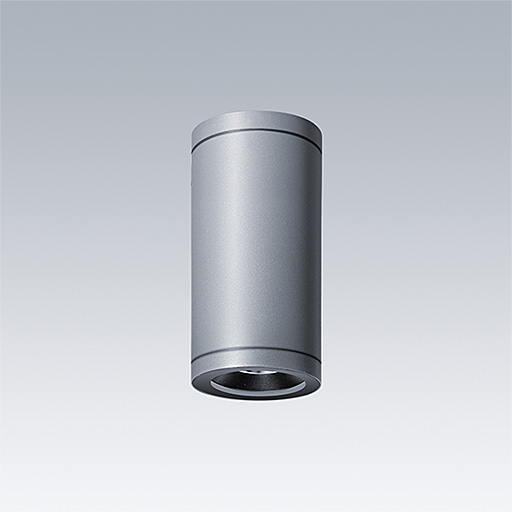

Cesar Amp Ceiling, small a surface mounted, architectural LED luminaire for decorative facade lighting, wide beam distribution. DALI-2 dimmable Remote LED driver. Class III electrical, IP65, Impact strength: IK08. Housing: Die-cast aluminium, powder coated grey. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED.

Dimensions: Ø90 x 165 mm
Luminaire input power: 8.8 W
Luminaire luminous flux: 452 lm
Luminaire efficacy: 51 lm/W
Weight: 1.07 kg

Mode selection
    • CE
    • IDA
    • IK08
    • IP65
    • SC3 - Protection Class 3

    ▼ Photometry

    Photometric configuration

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Step 1: Technical data
    (lm)
    (m)
    (m)
    (%)
    Step 2: Room Data
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
