Mica / MICA SLIM A 4L50 SOFT 832 RS FR

96271504

Data Sheet

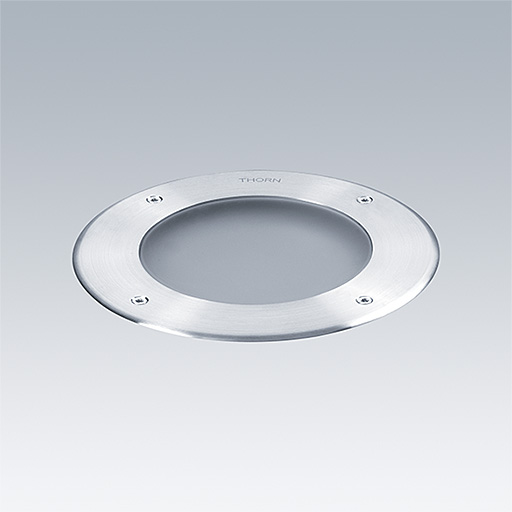

A medium, shallow, round ground recessed luminaire. 4 LED(s) driven at 500mA by integral driver for driveover guidance applications. Body: die-cast aluminium with powdered paint finish. Frame: stainless steel, 3mm thick. Front glass: frosted toughened glass, mm thick, surface temperature complies with EN60598-2-13. Pre-wired with 0.5m cable. Recessing box: polypropylene. Rated IP67, class I electrical. Maximum static load 5000kg. Complete with 3200K LED

Mica and Mica Slim can be installed in areas with a maximum low speed of 30km/h for the flat versions and 20km/h for the dome versions.

Dimensions: Ø235 x 198 mm



Weight: 5.22 kg

  • CE
  • GLedReP
  • IK10
  • IP67
  • LLedNr
  • Electrical class I
