  • Mica — MICA SLIM S 3L35 ACC 23D 840 RS SF

Mica / MICA SLIM S 3L35 ACC 23D 840 RS SF

96271538

▼ Data Sheet

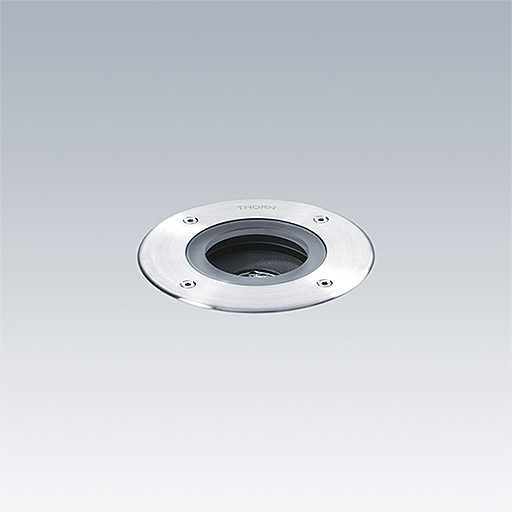

A small, shallow, round ground recessed luminaire. 3 LED(s) driven at 350mA by integral driver. 23° beam angle for driveover illumination applications. Tilting angle adjustment of ±15°. Body: die-cast aluminium with powdered paint finish. Frame: stainless steel, 3mm thick. Front glass: semi-frosted toughened glass, mm thick, surface temperature complies with EN60598-2-13. Pre-wired with 0.5m cable. Recessing box: polypropylene. Rated IP67, class I electrical. Maximum static load 5000kg. Complete with 4000K LED

Mica and Mica Slim can be installed in areas with a maximum low speed of 30km/h for the flat versions and 20km/h for the dome versions.

Dimensions: Ø165 x 178 mm
Luminaire input power: 4.3 W
Luminaire luminous flux: 195 lm
Luminaire efficacy: 45 lm/W
Weight: 2.6 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:195 lm
  • Luminaire efficacy*:45 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Rated median useful life*:L70 50000h at 25°C
  • Ballast:1x EL2
  • Luminaire input power*:4.3 W
  • Dimming:FO
  • LED
  • CE
  • GLedReP
  • IK10
  • IP67
  • LLedNr
  • Electrical class I
