  • Mica — <MICA SLIM SS 1L35 ACC 7D 840 AL SF

Mica / <MICA SLIM SS 1L35 ACC 7D 840 AL SF

96271479

▶Change configuration

  • Base: 96271479 — <MICA SLIM SS 1L35 ACC 7D 840 AL SF

▼ Data Sheet

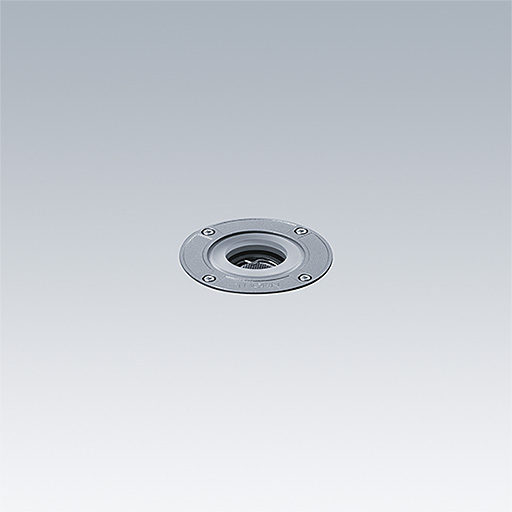

A small, shallow, round ground recessed luminaire. 1 LED(s) driven at 350mA by integral driver. 7° beam angle for driveover illumination applications. Tilting angle adjustment of ±15°. Body: die-cast aluminium with powdered paint finish. Frame: painted aluminium, 3mm thick. Front glass: semi-frosted toughened glass, mm thick, surface temperature complies with EN60598-2-13. Pre-wired with 0.5m cable. Recessing box: polypropylene. Rated IP67, class I electrical. Maximum static load 3500kg. Complete with 4000K LED

Mica and Mica Slim can be installed in areas with a maximum low speed of 30km/h for the flat versions and 20km/h for the dome versions.

Dimensions: Ø103 x 175 mm



Weight: 1.57 kg

Mode selection
  • Lamp position:STD - standard
  • CE
  • GLedReP
  • IK10
  • IP67
  • LLedNr
  • Electrical class I

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
