Pedestrian Crossing

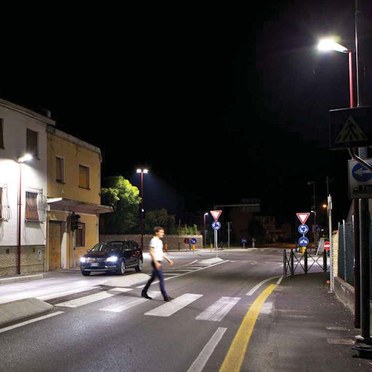

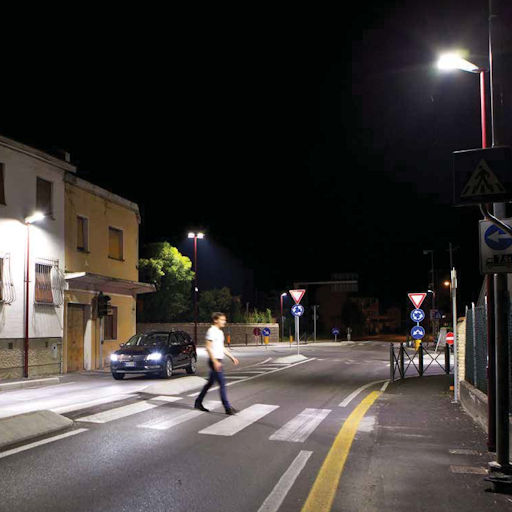

Innovative pedestrian crossing lighting concept, with optional LED blinker, designed for standard road lanterns
- Significantly improves vertical illuminance for high levels of visiblity, while extreme cut-off ensures low glare, which enhances clarity of the lit scene
- Easy installation and maintenance from proven products reduces the cost of ownership
- Broad choice of luminaire styles unifies the streetscape

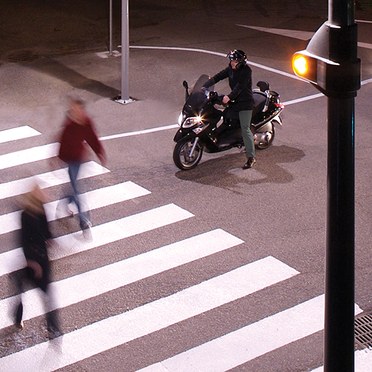

- Extra signalling via the flashing LED indicator, enhancing safety
Materials and Finish
Luminaire: see specific product page
Flashing module:
Body: ABS, finished in light grey (RAL9006) or powder coated texturised grey (close to RAL7043)
Diffuser: toughened glass
Screw fixings: stainless steel
Installation and Mounting
Luminaire: see specific product page
Flashing module: Mounts at 1120mm from the top of either a conical Ø60 mm column or cylindrical Ø76 mm column with a Ø22 mm hole (as per Thorn IVS column). Cable gland for Ø8-13mm cable. Delivered ready to install in a single carton, complete with factory fitted integral gear prewired with 5m of HO7RNF 2x1mm² cable.
New Product
LumExpress Product
eControl Product
▼ IVS CiviTEQ
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 36L70-740 IVS CL2 M60 GY-S | 77 | 11181 | LED | 5.70 | 96643155 | ||||
| CQ 48L70-740 IVS CL2 M60 GY-S | 101 | 15134 | LED | 9.60 | 96643158 | ||||
| CQ 48L70-757 IVS CL2 M60 GY-S | 9.20 | 96643228 | |||||||
| CQ 60L70-740 IVS CL2 M60 GY-S | 125 | 18685 | LED | 9.60 | 96643161 | ||||
| CQ 60L70-757 IVS CL2 M60 GY-S | 9.24 | 96643229 | |||||||
| CQ 72L70-740 IVS CL2 M60 GY-S | 149 | 22103 | LED | 9.60 | 96643164 | ||||
| CQ 72L70-757 IVS CL2 M60 GY-S | 9.30 | 96643230 |
▼ IVS Dyana LED
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <DYANA LED 36L70 IVS 740 CL2 MLE60 | 77 | 7780 | LED | 10.90 | 96274397 |
