Urba / URBA L 84L35 740 NR BP CL2 L60D ANT

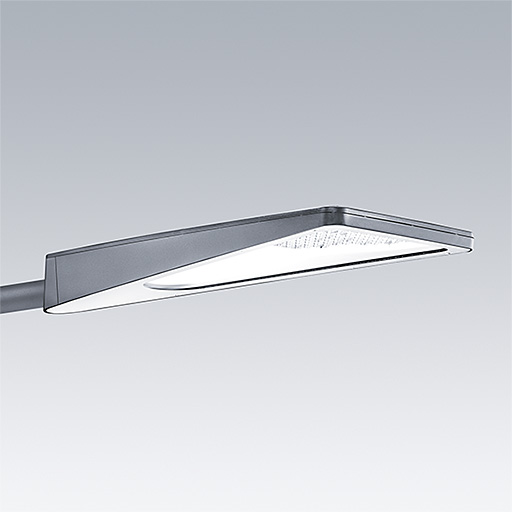

A large size LED urban street lighting lantern with 84 LEDs driven at 350mA with Narrow Road optic. Electronic, fixed output control gear. Class II electrical, IP66, IK09. Body: die-cast aluminium, textured dark grey. Cover: tempered flat clear glass. Side entry mounting to Ø60mm spigot with adjustable tilt angles of 0°, -5°, -10°. Integral power reduction function which dims down to 50% power, effective 3 hours before and 5 hours after a calculated midnight. Complete with 4000K LED.

Dimensions: 1065 x 400 x 176 mm
Luminaire input power: 88 W
Weight: 16 kg
Scx: 0.11 m²

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:13219 lm
• Luminaire efficacy*:150 lm/W
• Colour Rendering Index min.:70
• Ballast:1 x 96271332 DRV OS OT 165W 1.05A 285V D #1A0 4DIMLT2
• Correlated colour temperature:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated useful life (B10)*:L85 100000h at 25°C
• Luminaire input power*:88 W
• Dimming:FO
