  • Urba — URBA L 84L35 740 SC BP CL2 T76E W10 BK

Urba / URBA L 84L35 740 SC BP CL2 T76E W10 BK

96270082

▼ Data Sheet

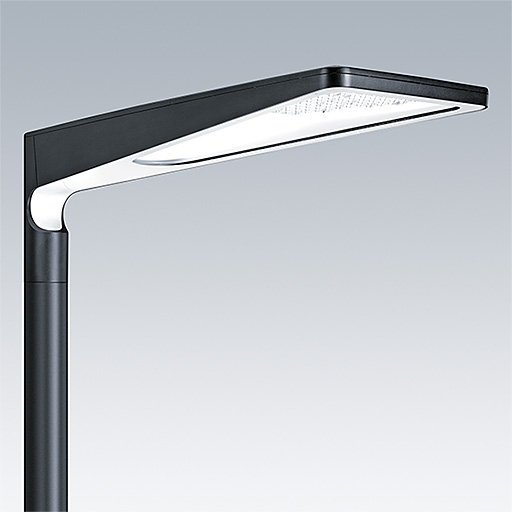

A large size LED urban street lighting lantern with 84 LEDs driven at 350mA with Street & Comfort optic. Electronic, fixed output control gear. Class II electrical, IP66, IK09. Body: die-cast aluminium, textured black. Cover: flat dichroic glass. Pre-wired with 10m cable. Post top mounting to Ø76mm column. Integral power reduction function which dims down to 50% power, effective 3 hours before and 5 hours after a calculated midnight. Complete with 4000K LED.

Dimensions: 1078 x 400 x 357 mm
Luminaire input power: 88 W
Weight: 16 kg
Scx: 0.13 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:13533 lm
  • Luminaire efficacy*:154 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 96271332 DRV OS OT 165W 1.05A 285V D #1A0 4DIMLT2
  • Correlated colour temperature:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L85 100000h at 25°C
  • Luminaire input power*:88 W
  • Dimming:FO
  • LED
  • CE
  • ENEC
  • GLedReP
  • IK09
  • IP66
  • Coastal_C3
  • LLedReP
  • SC2 - Protection Class 2
