  • Urba — URBA S 36L35 EPR BK CL2 8M MTP76 L740

Urba / URBA S 36L35 EPR BK CL2 8M MTP76 L740

96271169

▼ Data Sheet

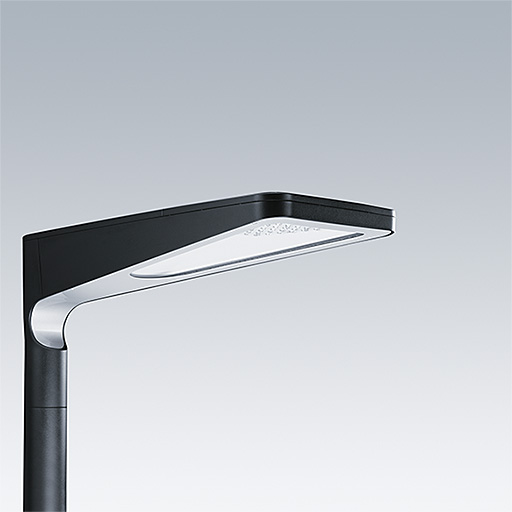

A small size LED urban street lighting lantern with 36 LEDs driven at 350mA with Prismatic optic. Electronic, fixed output control gear. Class II electrical, IP66, IK08. Body: die-cast aluminium, textured black. Cover: prismatic glass. Pre-wired with 8m cable. Post top mounting to Ø76mm column. Complete with 4000K LED.

Dimensions: 738 x 336 x 345 mm
Luminaire input power: 39 W
Weight: 10.5 kg
Scx: 0.1 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:5057 lm
  • Luminaire efficacy*:130 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 96271178 DRV OS OT 60W 1.05A 115V D #1A0 4DIMLT2
  • Correlated colour temperature:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L85 100000h at 25°C
  • Luminaire input power*:39 W
  • Dimming:FO
  • LED
  • CE
  • ENEC
  • GLedReP
  • IK09
  • IP66
  • Coastal_C5
  • LLedReP
  • SC2 - Protection Class 2

▼ Photometry

Photometric configuration
