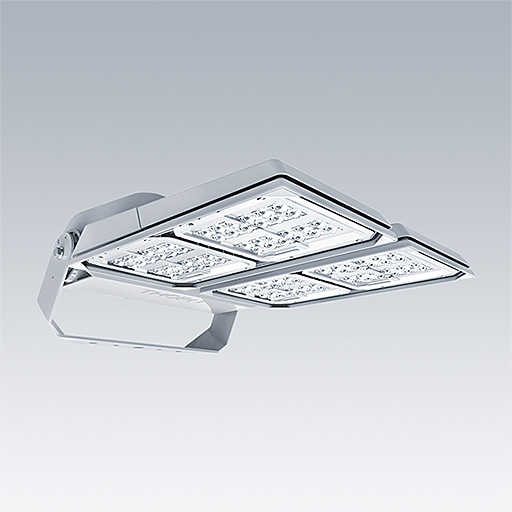

Areaflood Pro
General purpose area floodlight with superior optical performance and control
- Best optical performance and efficiency
- Optimal control of light (0cd at 90°, minimal spill light) for the comfort of inhabitants
- Compactness and reduced weight to avoid additional structural costs in retrofit installations
- No maintenance floodlight thanks to 100k hrs rated lifetime on both drivers and LEDs
- Medium and large versions are compliant with DIN 18032-3:1997-04 (Sports halls - halls for gymnastics, games and multi-purpose use - Part 3: Testing of safety against ball throwing)
Materials and Finish
Body and stirrup: die-cast aluminium (EN AC-44300) light grey 150 sanded textured (close to RAL9006). Standard corrosion class C5 according to ISO 9223:2012.
Glass: 4mm toughened
Screws: stainless steel
Installation and Mounting
For small version, stirrup fixed by a single bolt through one Ø22mm hole or two Ø12mm holes. For medium and large versions, it is fixed by a single bolt through one Ø22mm hole or two Ø15mm holes or two Ø12mm holes. Stirrup is reversible for hang down position. Integral gear tray, access by removal of canopy via 4 allen screws. Cable gland for Ø8-12mm cable. Optional spigot adaptors available separately for post top mounting.
Typical installation position is horizontal, although limited tilt may be useful to optimise lighting distributions. Uplighting position allowed. A special surface treatment is required for swimming pool installation.
New Product
LumExpress Product
eControl Product
▼ Areaflood Pro Small, Asymmetric optic 40°, bi-power
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP S 24L35-740 A4 BS 3550 CL2 GY | 28 | 4276 | LED | 6.20 | 96644711 | ||||
| AFP S 24L50-740 A4 BS 3550 CL2 GY | 38 | 5877 | LED | 6.20 | 96644731 | ||||
| AFP S 24L70-740 A4 BS 3550 CL2 GY | 52 | 7862 | LED | 6.20 | 96644751 | ||||
| AFP S 36L35-740 A4 BS 3550 CL2 GY | 39 | 6379 | LED | 6.30 | 96644771 | ||||
| AFP S 36L50-740 A4 BS 3550 CL2 GY | 55 | 8731 | LED | 6.30 | 96644791 | ||||
| AFP S 36L70-740 A4 BS 3550 CL2 GY | 77 | 11594 | LED | 6.30 | 96644821 |
▼ Areaflood Pro Small, Asymmetric optic 40°, DALI dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP S 24L50-740 A4 HFX CL2 GY | 38 | 5877 | LED | 6.20 | 96644740 | ||||
| AFP S 24L70-740 A4 HFX CL2 GY | 52 | 7862 | LED | 6.20 | 96644760 | ||||
| AFP S 36L35-740 A4 HFX CL2 GY | 39 | 6379 | LED | 6.30 | 96644780 | ||||
| AFP S 36L50-740 A4 HFX CL2 GY | 55 | 8731 | LED | 6.30 | 96644810 | ||||
| AFP S 36L70-740 A4 HFX CL2 GY | 77 | 11594 | LED | 6.30 | 96644848 |
▼ Areaflood Pro Small, Asymmetric optic 50°, bi-power
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP S 24L50-740 A5 BS 3550 CL2 GY | 38 | 5718 | LED | 6.20 | 96644733 | ||||
| AFP S 24L70-740 A5 BS 3550 CL2 GY | 52 | 7650 | LED | 6.20 | 96644753 | ||||
| AFP S 36L35-740 A5 BS 3550 CL2 GY | 39 | 6207 | LED | 6.24 | 96644773 | ||||
| AFP S 36L50-740 A5 BS 3550 CL2 GY | 55 | 8495 | LED | 6.24 | 96644793 | ||||
| AFP S 36L70-740 A5 BS 3550 CL2 GY | 77 | 11281 | LED | 6.29 | 96644823 |
▼ Areaflood Pro Small, Asymmetric optic 50°, DALI dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP S 24L50-740 A5 HFX CL2 GY | 38 | 5718 | LED | 6.20 | 96644741 | ||||
| AFP S 24L70-740 A5 HFX CL2 GY | 52 | 7650 | LED | 6.20 | 96644761 | ||||
| AFP S 36L35-740 A5 HFX CL2 GY | 39 | 6207 | LED | 6.23 | 96644781 | ||||
| AFP S 36L50-740 A5 HFX CL2 GY | 55 | 8495 | LED | 6.23 | 96644811 | ||||
| AFP S 36L70-740 A5 HFX CL2 GY | 77 | 11281 | LED | 6.29 | 96644849 |
▼ Areaflood Pro Small, Asymmetric optic 60°, bi-power
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP S 24L50-740 A6 BS 3550 CL2 GY | 38 | 5792 | LED | 6.20 | 96644735 | ||||
| AFP S 24L70-740 A6 BS 3550 CL2 GY | 52 | 7748 | LED | 6.20 | 96644755 | ||||
| AFP S 36L35-740 A6 BS 3550 CL2 GY | 39 | 6287 | LED | 6.24 | 96644775 | ||||
| AFP S 36L50-740 A6 BS 3550 CL2 GY | 55 | 8605 | LED | 6.24 | 96644795 | ||||
| AFP S 36L70-740 A6 BS 3550 CL2 GY | 77 | 11426 | LED | 6.29 | 96644825 |
▼ Areaflood Pro Small, Asymmetric optic 60°, DALI dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP S 24L50-740 A6 HFX CL2 GY | 38 | 5792 | LED | 6.20 | 96644742 | ||||
| AFP S 24L70-740 A6 HFX CL2 GY | 52 | 7748 | LED | 6.20 | 96644762 | ||||
| AFP S 36L35-740 A6 HFX CL2 GY | 39 | 6287 | LED | 6.23 | 96644782 | ||||
| AFP S 36L50-740 A6 HFX CL2 GY | 55 | 8605 | LED | 6.23 | 96644812 | ||||
| AFP S 36L70-740 A6 HFX CL2 GY | 77 | 11426 | LED | 6.29 | 96644850 |
▼ Areaflood Pro Medium, Asymmetric optic 40°, bi-power
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP M 48L35-740 A4 BS 3550 CL2 GY | 50 | 8552 | LED | 12.96 | 96644879 | ||||
| AFP M 48L50-740 A4 BS 3550 CL2 GY | 72 | 11754 | LED | 13.63 | 96644899 | ||||
| AFP M 48L70-740 A4 BS 3550 CL2 GY | 101 | 15724 | LED | 13.63 | 96644919 | ||||
| AFP M 72L35-740 A4 BS 3550 CL2 GY | 75 | 12784 | LED | 13.77 | 96644939 | ||||
| AFP M 72L50-740 A4 BS 3550 CL2 GY | 107 | 17526 | LED | 13.77 | 96644959 | ||||
| AFP M 72L70-740 A4 BS 3550 CL2 GY | 150 | 23339 | LED | 13.77 | 96644989 |
▼ Areaflood Pro Medium, Asymmetric optic 40°, DALI dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP M 48L35-740 A4 HFX CL2 GY | 50 | 8552 | LED | 11.77 | 96644888 | ||||
| AFP M 48L50-740 A4 HFX CL2 GY | 72 | 11754 | LED | 12.95 | 96644908 | ||||
| AFP M 48L70-740 A4 HFX CL2 GY | 101 | 15724 | LED | 13.62 | 96644928 | ||||
| AFP M 72L35-740 A4 HFX CL2 GY | 75 | 12784 | LED | 13.75 | 96644948 | ||||
| AFP M 72L50-740 A4 HFX CL2 GY | 107 | 17526 | LED | 13.75 | 96644978 | ||||
| AFP M 72L70-740 A4 HFX CL2 GY | 150 | 23339 | LED | 13.75 | 96645016 |
▼ Areaflood Pro Medium, Asymmetric optic 50°, bi-power
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP M 48L35-740 A5 BS 3550 CL2 GY | 50 | 8321 | LED | 12.96 | 96644881 | ||||
| AFP M 48L50-740 A5 BS 3550 CL2 GY | 72 | 11437 | LED | 13.63 | 96644901 | ||||
| AFP M 48L70-740 A5 BS 3550 CL2 GY | 101 | 15299 | LED | 13.63 | 96644921 | ||||
| AFP M 72L35-740 A5 BS 3550 CL2 GY | 75 | 12439 | LED | 13.77 | 96644941 | ||||
| AFP M 72L50-740 A5 BS 3550 CL2 GY | 107 | 17053 | LED | 13.77 | 96644961 |
▼ Areaflood Pro Medium, Asymmetric optic 50°, DALI dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP M 48L35-740 A5 HFX CL2 GY | 50 | 8321 | LED | 11.77 | 96644889 | ||||
| AFP M 48L50-740 A5 HFX CL2 GY | 72 | 11437 | LED | 12.95 | 96644909 | ||||
| AFP M 48L70-740 A5 HFX CL2 GY | 101 | 15299 | LED | 13.62 | 96644929 | ||||
| AFP M 72L35-740 A5 HFX CL2 GY | 75 | 12439 | LED | 13.75 | 96644949 | ||||
| AFP M 72L50-740 A5 HFX CL2 GY | 107 | 17053 | LED | 13.75 | 96644979 | ||||
| AFP M 72L70-740 A5 HFX CL2 GY | 150 | 22709 | LED | 13.75 | 96645017 |
▼ Areaflood Pro Medium, Asymmetric optic 60°, bi-power
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP M 48L35-740 A6 BS 3550 CL2 GY | 50 | 8428 | LED | 12.96 | 96644883 | ||||
| AFP M 48L50-740 A6 BS 3550 CL2 GY | 72 | 11584 | LED | 13.63 | 96644903 | ||||
| AFP M 48L70-740 A6 BS 3550 CL2 GY | 101 | 15497 | LED | 13.63 | 96644923 | ||||
| AFP M 72L35-740 A6 BS 3550 CL2 GY | 75 | 12600 | LED | 13.77 | 96644943 | ||||
| AFP M 72L50-740 A6 BS 3550 CL2 GY | 107 | 17273 | LED | 13.77 | 96644963 | ||||
| AFP M 72L70-740 A6 BS 3550 CL2 GY | 150 | 23002 | LED | 13.77 | 96644993 |
▼ Areaflood Pro Medium, Asymmetric optic 60°, DALI dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP M 48L35-740 A6 HFX CL2 GY | 50 | 8428 | LED | 11.77 | 96644890 | ||||
| AFP M 48L50-740 A6 HFX CL2 GY | 72 | 11584 | LED | 12.95 | 96644910 | ||||
| AFP M 48L70-740 A6 HFX CL2 GY | 101 | 15497 | LED | 13.62 | 96644930 | ||||
| AFP M 72L35-740 A6 HFX CL2 GY | 75 | 12600 | LED | 13.75 | 96644950 | ||||
| AFP M 72L50-740 A6 HFX CL2 GY | 107 | 17273 | LED | 13.75 | 96644980 | ||||
| AFP M 72L70-740 A6 HFX CL2 GY | 150 | 23002 | LED | 13.75 | 96645018 |
▼ Areaflood Pro Large, Asymmetric optic 40°, bi-power
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP L 120L35-740 A4 BS 3550 CL2 GY | 124 | 21253 | LED | 17.04 | 96644543 | ||||
| AFP L 120L50-740 A4 BS 3550 CL2 GY | 177 | 29070 | LED | 18.39 | 96644563 | ||||
| AFP L 120L70-740 A4 BS 3550 CL2 GY | 249 | 38553 | LED | 18.39 | 96644583 | ||||
| AFP L 144L35-740 A4 BS 3550 CL2 GY | 149 | 25412 | LED | 18.48 | 96644603 | ||||
| AFP L 144L50-740 A4 BS 3550 CL2 GY | 211 | 34658 | LED | 18.48 | 96644623 | ||||
| AFP L 144L70-740 A4 BS 3550 CL2 GY | 297 | 45792 | LED | 18.48 | 96644653 | ||||
| AFP L 144L85-740 A4 BS 3550 CL2 GY | 360 | 51339 | LED | 18.72 | 96632327 | ||||
| AFP L 96L35-740 A4 BS 3550 CL2 GY | 98 | 17058 | LED | 17.32 | 96645047 |
▼ Areaflood Pro Large, Asymmetric optic 40°, DALI dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP L 120L35-740 A4 HFX CL2 GY | 124 | 21253 | LED | 17.05 | 96644552 | ||||
| AFP L 120L50-740 A4 HFX CL2 GY | 177 | 29070 | LED | 18.40 | 96644572 | ||||
| AFP L 120L70-740 A4 HFX CL2 GY | 249 | 38553 | LED | 18.40 | 96644592 | ||||
| AFP L 144L35-740 A4 HFX CL2 GY | 149 | 25412 | LED | 18.49 | 96644612 | ||||
| AFP L 144L50-740 A4 HFX CL2 GY | 211 | 34658 | LED | 18.49 | 96644642 | ||||
| AFP L 144L70-740 A4 HFX CL2 GY | 297 | 45792 | LED | 18.49 | 96644680 | ||||
| AFP L 144L85-740 A4 HFX CL2 GY | 360 | 51339 | LED | 18.49 | 96632240 | ||||
| AFP L 96L35-740 A4 HFX CL2 GY | 98 | 17058 | LED | 17.31 | 96645056 | ||||
| AFP L 96L50-740 A4 HFX CL2 GY | 141 | 23393 | LED | 17.31 | 96645076 | ||||
| AFP L 96L70-740 A4 HFX CL2 GY | 201 | 31168 | LED | 18.35 | 96645096 |
▼ Areaflood Pro Large, Asymmetric optic 50°, bi-power
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP L 120L35-740 A5 BS 3550 CL2 GY | 124 | 20747 | LED | 17.04 | 96644545 | ||||
| AFP L 120L50-740 A5 BS 3550 CL2 GY | 177 | 28378 | LED | 18.39 | 96644565 | ||||
| AFP L 120L70-740 A5 BS 3550 CL2 GY | 249 | 37635 | LED | 18.39 | 96644585 | ||||
| AFP L 144L35-740 A5 BS 3550 CL2 GY | 149 | 24808 | LED | 18.48 | 96644605 | ||||
| AFP L 144L50-740 A5 BS 3550 CL2 GY | 211 | 33834 | LED | 18.48 | 96644625 | ||||
| AFP L 144L70-740 A5 BS 3550 CL2 GY | 297 | 44702 | LED | 18.48 | 96644655 | ||||
| AFP L 96L35-740 A5 BS 3550 CL2 GY | 98 | 16652 | LED | 17.32 | 96645049 | ||||
| AFP L 96L50-740 A5 BS 3550 CL2 GY | 141 | 22836 | LED | 17.32 | 96645069 | ||||
| AFP L 96L70-740 A5 BS 3550 CL2 GY | 201 | 30426 | LED | 18.34 | 96645089 |
▼ Areaflood Pro Large, Asymmetric optic 50°, DALI dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP L 120L35-740 A5 HFX CL2 GY | 124 | 20747 | LED | 17.05 | 96644553 | ||||
| AFP L 120L50-740 A5 HFX CL2 GY | 177 | 28378 | LED | 18.40 | 96644573 | ||||
| AFP L 120L70-740 A5 HFX CL2 GY | 249 | 37635 | LED | 18.40 | 96644593 | ||||
| AFP L 144L35-740 A5 HFX CL2 GY | 149 | 24808 | LED | 18.49 | 96644613 | ||||
| AFP L 144L50-740 A5 HFX CL2 GY | 211 | 33834 | LED | 18.49 | 96644643 | ||||
| AFP L 144L70-740 A5 HFX CL2 GY | 297 | 44702 | LED | 18.49 | 96644681 | ||||
| AFP L 96L35-740 A5 HFX CL2 GY | 98 | 16652 | LED | 17.31 | 96645057 | ||||
| AFP L 96L50-740 A5 HFX CL2 GY | 141 | 22836 | LED | 17.31 | 96645077 | ||||
| AFP L 96L70-740 A5 HFX CL2 GY | 201 | 30426 | LED | 18.35 | 96645097 |
▼ Areaflood Pro Large, Asymmetric optic 60°, bi-power
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP L 120L35-740 A6 BS 3550 CL2 GY | 124 | 20857 | LED | 17.04 | 96644547 | ||||
| AFP L 120L50-740 A6 BS 3550 CL2 GY | 177 | 28528 | LED | 18.39 | 96644567 | ||||
| AFP L 120L70-740 A6 BS 3550 CL2 GY | 249 | 37834 | LED | 18.39 | 96644587 | ||||
| AFP L 144L35-740 A6 BS 3550 CL2 GY | 149 | 24939 | LED | 18.48 | 96644607 | ||||
| AFP L 144L50-740 A6 BS 3550 CL2 GY | 211 | 34012 | LED | 18.48 | 96644627 | ||||
| AFP L 96L35-740 A6 BS 3550 CL2 GY | 98 | 16740 | LED | 17.32 | 96645051 | ||||
| AFP L 96L50-740 A6 BS 3550 CL2 GY | 141 | 22957 | LED | 17.32 | 96645071 | ||||
| AFP L 96L70-740 A6 BS 3550 CL2 GY | 201 | 30587 | LED | 18.34 | 96645091 |
▼ Areaflood Pro Large, Asymmetric optic 60°, DALI dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AFP L 120L35-740 A6 HFX CL2 GY | 124 | 20857 | LED | 17.05 | 96644554 | ||||
| AFP L 120L50-740 A6 HFX CL2 GY | 177 | 28528 | LED | 18.40 | 96644574 | ||||
| AFP L 120L70-740 A6 HFX CL2 GY | 249 | 37834 | LED | 18.40 | 96644594 | ||||
| AFP L 144L35-740 A6 HFX CL2 GY | 149 | 24939 | LED | 18.49 | 96644614 | ||||
| AFP L 144L50-740 A6 HFX CL2 GY | 211 | 34012 | LED | 18.49 | 96644644 | ||||
| AFP L 144L70-740 A6 HFX CL2 GY | 297 | 44938 | LED | 18.49 | 96644682 | ||||
| AFP L 144L85-740 A6 HFX CL2 GY | 360 | 51384 | LED | 18.72 | 96633294 | ||||
| AFP L 96L35-740 A6 HFX CL2 GY | 98 | 16740 | LED | 17.31 | 96645058 | ||||
| AFP L 96L50-740 A6 HFX CL2 GY | 141 | 22957 | LED | 17.31 | 96645078 | ||||
| AFP L 96L70-740 A6 HFX CL2 GY | 201 | 30587 | LED | 18.35 | 96645098 |
