  • Linn Bollard — LINN RCT LED 6L50 832

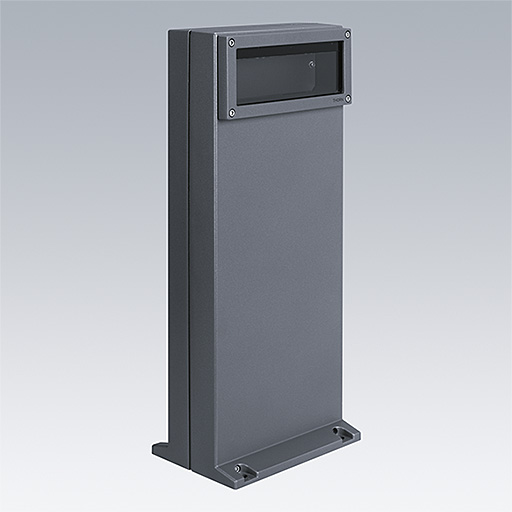

Linn Bollard / LINN RCT LED 6L50 832

96262126

▶Change configuration

  • Base: 96262126 — LINN RCT LED 6L50 832
  • Attachment: 96264336 — LINN RCT BOLLARD EXTENSION
  • Louvre/diffuser/cover: 96262133 — LINN RCT FR GL FRAME

▼ Data Sheet

A rectangular, Recessed LED luminaire for pathway lighting applications. Electronic, fixed output control gear. Class I electrical, IP65, IK10. Body: die-cast aluminium, painted dark grey (Akzo Nobel 900). Glass: tempered glass, 8mm thick. Recessed housing (required, to be ordered separately): polypropylene. Complete with 3200K LED

Dimensions: 102 x 229 x 92 mm

Weight: 0.67 kg

Equipped with:

  • Bollard mounting accessory for Linn rectangular luminaires. Body: die-cast aluminium, powder coated dark grey. Dimensions: 239 x 92 x 550 mm Weight: 4.35 kg
  • Frosted glass frame for rectangular Linn luminaire.
Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:354 lm
  • Luminaire efficacy*:31 lm/W
  • Correlated colour temperature:3200 Kelvin
  • Ballast:1x EL2
  • Luminaire input power*:11.3 W Power factor = 0.54
  • Dimming:FO
  • LED
  • CE
  • 850°
  • IK10
  • IP65
  • Electrical class I
  • Ta=35°C
