Avenue Wall 300 II / AVENUE W300 II LED 12L35 740 CL2

96259038 / E7717152

Data Sheet

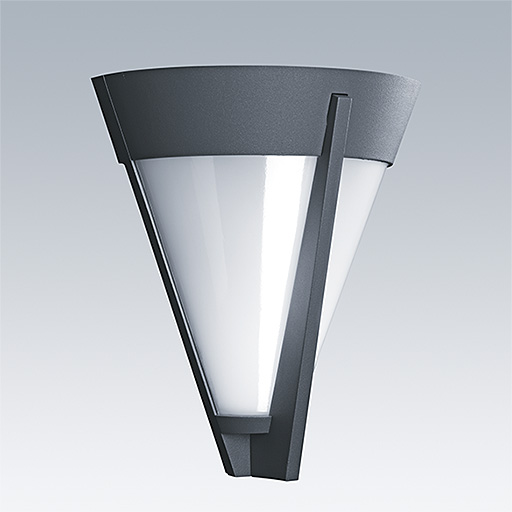

Avenue Deco wall light. Class II electrical, IP65, with opal polycarbonate bowl. Complete with integral control gear and 14W LED source. Complete with 4000K LED

Dimensions: 313 x 176 x 362 mm
Luminaire input power: 15 W
Weight: 3.42 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:450 lm
  • Luminaire efficacy*:30 lm/W
  • Ballast:1 x 96670799 DRV TC HPFU 15W 350mA 41.5V F #127713#VE
  • Correlated colour temperature*:4200 Kelvin
  • Luminaire input power*:15 W
  • LED
  • CE
  • GLedReP
  • IK09
  • IP65
  • Coastal_C3
  • LLedReP
  • SC2 - Protection Class 2
  • Ta=25
