Contus

  • Contus

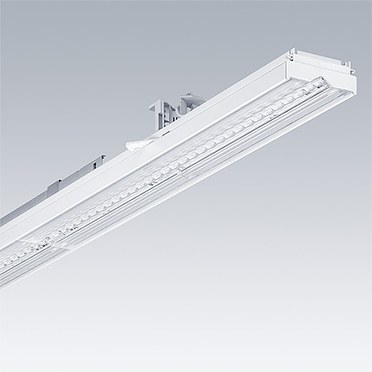

CONTUS Trunking System

  • Energy-efficient LED continuous row luminaire with light efficiency of up to 163 lm/W
  • Provides optimal linear illuminance for your application area, such as Retail, Logistics & Industry, with a choice of 4 beam angles; Wide Beam, Very Wide Beam, Narrow Beam and Shelf Beam
  • Colour tolerance between several luminaires of max. 3 MacAdam ellipses
  • LED Service life: up to L80 at 50.000h
  • Phase selection for 3 phase circuits and 2 emergency lighting circuits
  • 100 % flexible, tool-free mechanical and electrical installation via the two side-mounted rotary levers

Materials and Finish

Trunking units: pre-coated roll form steel, white (similar to RAL9016)
Electrical feeds: pre-coated roll form steel, white (similar to RAL9016), combined with galvanised steel mechanical connector
Battens: pre-coated roll form steel, white (similar to RAL9016)
End caps: Polycarbonate for Trunking, Acrylonitrile styrene acrylate for Battens
Mounting accessory: Stainless steel wall/ceiling mount components
Diffuser/Lens: injection moulded PMMA Plastic

Installation and Mounting

CONTUS continuous-row lighting system can be installed without the need for tools. Thanks to a unique, factory mounted connector, the trunking units can be connected mechanically and electrically at the same time. Luminaires simply lock into place and can be repositioned easily at any time.
An easy to use mounting bracket provides the connection between the wall or ceiling and the trunking. A cord suspension can be fixed to the trunking without the use of any tool by exerting slight pressure, and it can also be moved as required. Pendant height adjustment is also entirely tool-free. The distance between the suspension points can be up to 3 meters. The system can be installed in an environment with ambient temperatures of -10°C up to +35°C degrees for HE luminaires and -10°C up to +30°C degrees for HO luminaires.

go to myProduct Contus

New Product
LumExpress Product
eControl Product

▼ Contus, batten, length 1000mm

Description   TypeSocketWt (kg)SAP Code
CONTUS 3700-840 L1000 WB HF WHLEDLED1.4396635806
CONTUS 3700-840 L1000 WB HFIX WHLEDLED1.5096635812
CONTUS 5200-830 L1000 WB HF WHLEDLED1.4396636073
CONTUS 5200-840 L1000 NB HF WHLEDLED1.4396635818
CONTUS 5200-840 L1000 SB HF WHLEDLED1.4396635819
CONTUS 5200-840 L1000 VWB HF WHLEDLED1.4496635820
CONTUS 5200-840 L1000 WB HF WHLEDLED1.4396635807
CONTUS 5200-840 L1000 WB HFIX WHLEDLED1.5096635813

▼ Contus, batten, length 1500mm

Description   TypeSocketWt (kg)SAP Code
CONTUS 5500-840 L1500 WB HF WHLEDLED2.1396635808
CONTUS 5500-840 L1500 WB HFIX WHLEDLED2.2096635814
CONTUS 8000-830 L1500 WB HF WHLEDLED2.1396636074
CONTUS 8000-840 L1500 NB HF WHLEDLED2.1296635821
CONTUS 8000-840 L1500 SB HF WHLEDLED2.1296635822
CONTUS 8000-840 L1500 VWB HF WHLEDLED2.1496635823
CONTUS 8000-840 L1500 WB HF WHLEDLED2.1396635809
CONTUS 8000-840 L1500 WB HFIX WHLEDLED2.2096635815

▼ Contus, batten, length 2000mm

Description   TypeSocketWt (kg)SAP Code
CONTUS 10000-830 L2000 WB HF WHLEDLED2.7596636075
CONTUS 10000-840 L2000 NB HF WHLEDLED2.7496635824
CONTUS 10000-840 L2000 SB HF WHLEDLED2.7496635825
CONTUS 10000-840 L2000 VWB HF WHLEDLED2.7796635826
CONTUS 10000-840 L2000 WB HF WHLEDLED2.7596635811
CONTUS 10000-840 L2000 WB HFIX WHLEDLED2.8396635817
CONTUS 7400-840 L2000 WB HF WHLEDLED2.7596635810
CONTUS 7400-840 L2000 WB HFIX WHLEDLED2.8396635816

▼ Contus, trunking units

Description   Wt (kg)SAP Code
CONTUS T L1500 WH2.9096635827
CONTUS T L2000 WH3.7096635828
CONTUS T L2500 WH4.4996635829
CONTUS T L4000 WH6.6096635830

▼ Contus, electrical feed

Description   Wt (kg)SAP Code
CONTUS TA WH0.5696635831
CONTUS TA-F WH2.0496635832
CONTUS TE L500 WH1.4096635833
CONTUS TE WH0.7096636186
CONTUS TM L750 WH1.4596635835
CONTUS TM TA/TE L500 WH1.3096635834

▼ Contus, node connector

Description   Wt (kg)SAP Code
CONTUS T-VL1 WH1.3596635838
CONTUS T-VL2 WH1.8496635839
CONTUS T-VL3 WH1.7096635840
CONTUS T-VL4 WH1.8896635841
CONTUS T-VT1 WH2.1096635842
CONTUS T-VT2 WH2.4296635843
CONTUS T-VT3 WH2.9096635844
CONTUS T-VT4 WH2.4296635845

▼ Contus, mounting components

Description   Wt (kg)SAP Code
SWI 2.5 1000 CHAIN ST/ZN #K27 KNOTTED0.1320042906
TEC/CONT/SLN2/SLOIN/EQL/CHAL3 ASI1 O-L0.0722169178
TEC/CONT/SLN2/SLOIN/EQL/CHAL3 ASI2 O-L0.8022169179
TECTON/CONTUS AC (Caddy Clip)0.0322169176
TECTON/CONTUS AK0.0522169177
TECTON/CONTUS ASI1 O-L + Caddy-Clip0.0722169181
TECTON/CONTUS ASI1 O-L LOOP0.0822170952
TECTON/CONTUS ASI2 O-L + Caddy-Clip0.1022169182
TECTON/CONTUS ASI2 O-L LOOP0.0922170954
TECTON/CONTUS ASI5 O-L0.0822169180
TECTON/CONTUS ASI5 O-L LOOP0.1322170956
TECTON/CONTUS/SLN2/SLOIN/SLOT2/EQL AD0.2022169175
ZAKK NIRO (K27 KNOTENKETTE 1.43)0.1620969682

▼ Contus, cover strip

Description   Wt (kg)SAP Code
TECTON/CONTUS T/KK AK 1498 PP WH0.1022170178
TECTON/CONTUS T/KK AK 1997 PP WH0.1422170180

▼ Contus, accessories

Description   Wt (kg)SAP Code
TECTON/CONTUS ABLH0.6822064924
TECTON/CONTUS T-EF WH0.1022065758
TECTON/CONTUS TZ0.0722161459
