D-CO Recessed

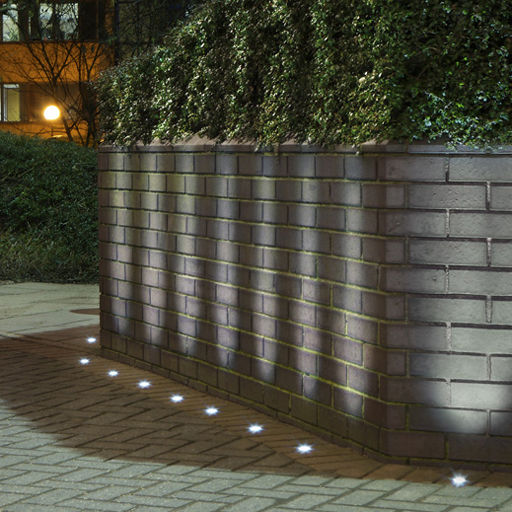

A range of LED based, recessed 'walk-over' luminaires for guidance and accent applications
- High quality finish
- Complies with the contact temperature standard (EN60598-2-13)
- Plastic end caps supplied for installation in concrete
- Pre-wired with 5m cable
Materials and Finish
Recessed units
Body: aluminium (except medium, PC/ABS blend), CNC Electrophoresis
Recessed housing: aluminium (except Maxi – ABS) with plastic end cap
Glass: toughened frosted or clear
Frames/Windows: stainless steel 316L
Gasket: anti-ageing silicone
Connection boxes
Body: PC/ABS blend
Installation and Mounting
Recessed units
In ground: To ensure efficient drainage, gravel must be used to a depth of 300mm beneath the housing. The plastic end cap prevents ingress of concrete during installation.
All the fittings are supplied with 5m cable. Single Mini units are supplied pre-wired with cable with remote gear, recessed box, plastic end cap, connectors and 3 way connection box. Mini kit luminaires are individually pre-wired with cable and supplied with an 8 way connection box, containing gear and connectors – including a specific connector for through wiring. If a single LED fails, the other system LEDs continues to operate. Connector has LED failure alerting display.
Static load: 500kg
Connection boxes
Two versions: One has 3 glanded cable entries 2 x PG13 (in) and 1 x PG9 (out), the other 8 glanded cable entries 2 x PG13 (in) and 6 x PG9 (out).
▼ D-CO Recessed Mini Kits
| Description | Catalogue No. | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D-CO R LED MINI 6X1L35 830 CL KIT | E7763133 | 1.30 | 96257249 | |||||||
| D-CO R LED MINI 6X1L35 830 EW2 KIT | E7763131 | 1.30 | 96257255 | |||||||
| D-CO R LED MINI 6X1L35 830 FR KIT | E7763129 | 1.30 | 96257252 |
▼ D-CO Recessed Medium
| Description | Luminaire power (W) | Catalogue No. | Type | Wt (kg) | SAP Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| D-CO R LED MEDIUM 1L35 830 FR | 3 | E7763143 | LED | 0.70 | 96257237 | |||||
| D-CO R LED MEDIUM 1L35 BLU FR | 3 | E7763145 | LED | 0.70 | 96257238 |

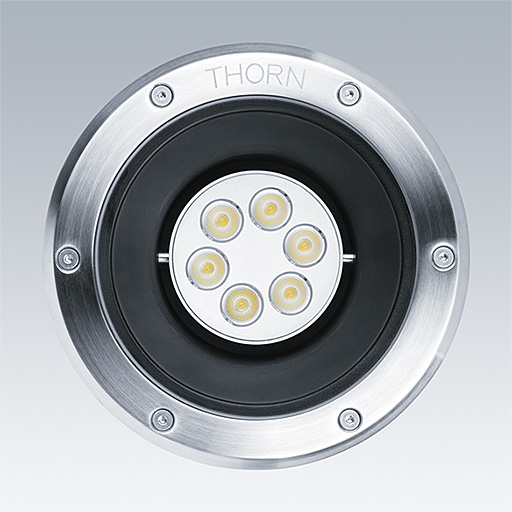

▼ D-CO Recessed Maxi
| Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| D-CO R LED MAXI 6L50 830 CL | 12 | 561 | E7763147 | LED | 3.00 | 96257240 |
