  • Axyl Trim — AXYL TRIM L PERF 6L927 A/S RD GY

Axyl Trim / AXYL TRIM L PERF 6L927 A/S RD GY

96701358

▼ Data Sheet

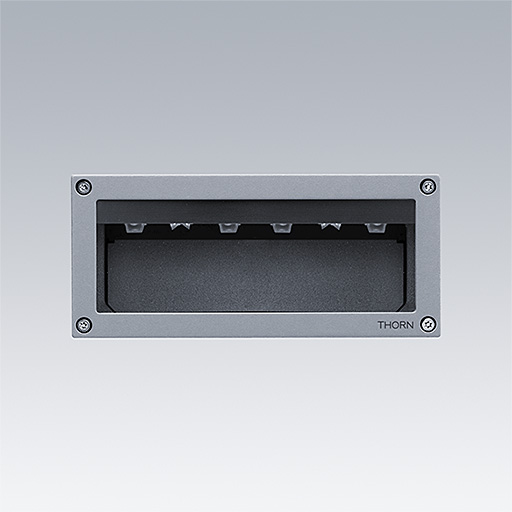

Axyl Trim, performance facia, a wall recessed, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class III electrical.. DALI-2 dimmable Remote LED driver. Recessed box 96700290 to be order separately, IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured grey (RAL9006). Working ambient temperature: -20°C to +50°C. Complete with 2700K LED. Recessed box 96700290 to be order separately.

Dimensions: 230 x 102 x 95 mm
Luminaire input power: 11.8 W
Luminaire luminous flux: 408 lm
Luminaire efficacy: 35 lm/W
Weight: 1.48 kg

Mode selection
    • CE
    • IK06
    • IP65
    • SC3 - Protection Class 3
