  • Cesar Opera, drive over — CESAR OPERA XL DO 16L 940 AS HFX SS

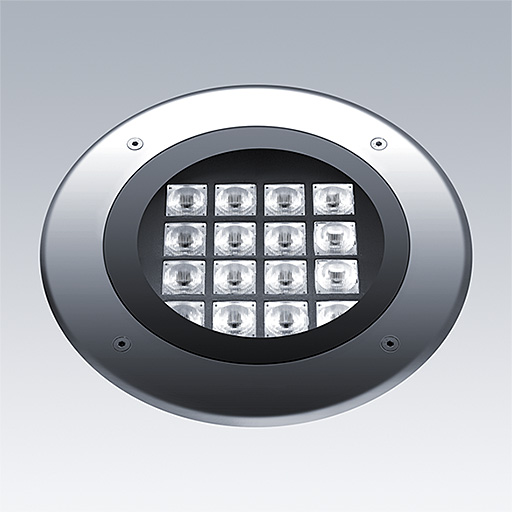

Cesar Opera, drive over / CESAR OPERA XL DO 16L 940 AS HFX SS

96700971

▼ Data Sheet

Cesar Opera, drive over extra-large a floor recessed, architectural LED luminaire for decorative facade lighting, asymmetrical distribution. DALI-2 dimmable LED driver. Class I electrical, IP67, Impact strength: IK10. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +45°C. Complete with 4000K LED.

Dimensions: Ø375 x 200 mm
Luminaire input power: 33 W
Luminaire luminous flux: 2669 lm
Luminaire efficacy: 81 lm/W
Weight: 9.87 kg

Mode selection
    • CE
    • IK10
    • IP67
    • Electrical class I

    ▼ Photometry

    Photometric configuration

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Step 1: Technical data
    (lm)
    (m)
    (m)
    (%)
    Step 2: Room Data
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
