Cesar Opera, drive over / CESAR OPERA XL DO 1L 927 MB HFX SS

96700973

▼ Data Sheet

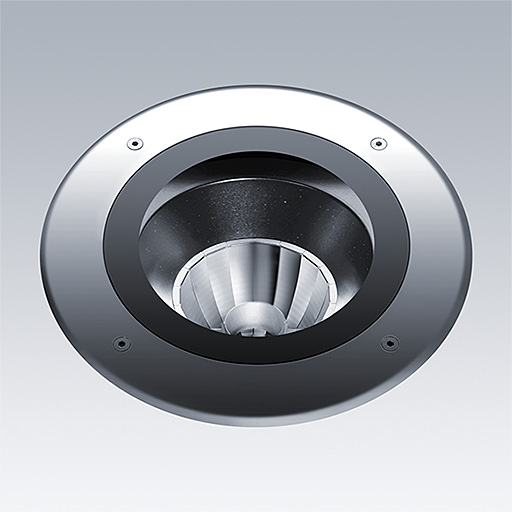

Cesar Opera, drive over extra-large a floor recessed, architectural LED luminaire for decorative facade lighting, medium beam distribution. DALI-2 dimmable LED driver. Class I electrical, IP67, Impact strength: IK10. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +45°C. Complete with 2700K LED.

Dimensions: Ø375 x 200 mm
Luminaire input power: 33.2 W
Luminaire luminous flux: 2509 lm
Luminaire efficacy: 76 lm/W
Weight: 9.91 kg

Mode selection
    • CE
    • IK10
    • IP67
    • Electrical class I
