  • Cesar Opera, drive over — CESAR OPERA L DO 1L927 WB HFX SS

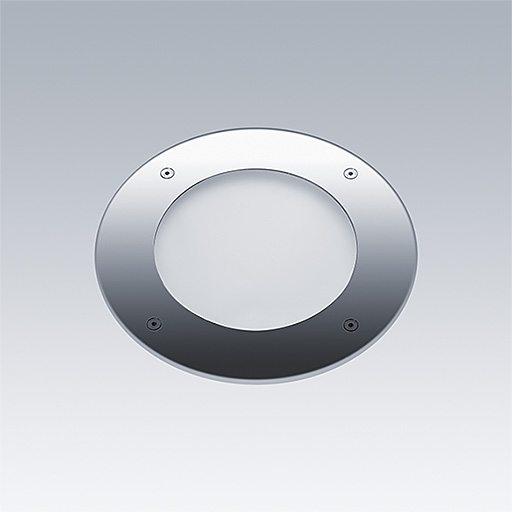

Cesar Opera, drive over / CESAR OPERA L DO 1L927 WB HFX SS

96700409

▼ Data Sheet

Cesar Opera, drive over large a floor recessed, architectural LED luminaire for decorative facade lighting, wide beam distribution. DALI-2 dimmable LED driver. Class I electrical, IP67, Impact strength: IK10. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +45°C. Complete with 2700K LED.

Dimensions: Ø297 x 195 mm
Luminaire input power: 10.2 W
Luminaire luminous flux: 156 lm
Luminaire efficacy: 15 lm/W
Weight: 5.47 kg

Mode selection
    • CE
    • IK10
    • IP67
    • Electrical class I

    ▼ Photometry

    Photometric configuration
