  • Cesar Opera, drive over — CESAR OPERA L DO 9L 930 AS HFX SS

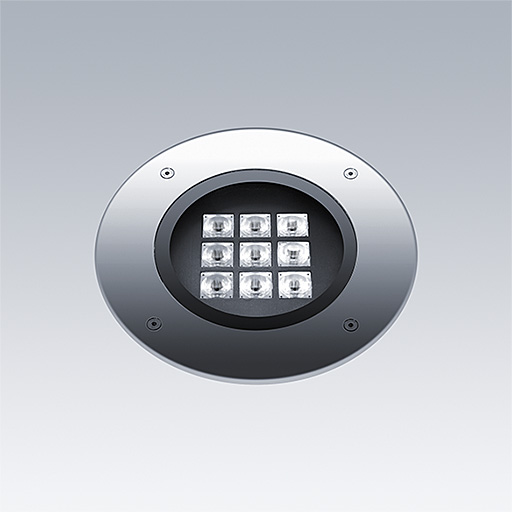

Cesar Opera, drive over / CESAR OPERA L DO 9L 930 AS HFX SS

96700963

▼ Data Sheet

Cesar Opera, drive over large a floor recessed, architectural LED luminaire for decorative facade lighting, asymmetrical distribution. DALI-2 dimmable LED driver. Class I electrical, IP67, Impact strength: IK10. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +45°C. Complete with 3000K LED.

Dimensions: Ø297 x 195 mm
Luminaire input power: 16.6 W
Luminaire luminous flux: 1182 lm
Luminaire efficacy: 71 lm/W
Weight: 5.9 kg

Mode selection
    • CE
    • IK10
    • IP67
    • Electrical class I
