Cesar Opera, drive over / CESAR OPERA M DO 1L 927 MB RD SS

96701821

▼ Data Sheet

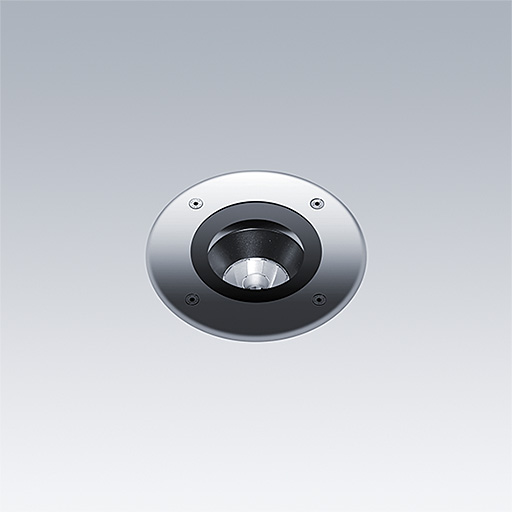

Cesar Opera, drive over medium a floor recessed, architectural LED luminaire for decorative facade lighting, medium beam distribution. DALI-2 dimmable Remote LED driver. Class III electrical, IP67, Impact strength: IK10. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED.

Dimensions: Ø237 x 175 mm
Luminaire input power: 8.7 W
Luminaire luminous flux: 410 lm
Luminaire efficacy: 47 lm/W
Weight: 2.84 kg

Mode selection
    • CE
    • IK10
    • IP67
    • SC3 - Protection Class 3
