  • Cesar Opera, drive over — CESAR OPERA S DO 1L 940 NB HF SS

Cesar Opera, drive over / CESAR OPERA S DO 1L 940 NB HF SS

96700947

▼ Data Sheet

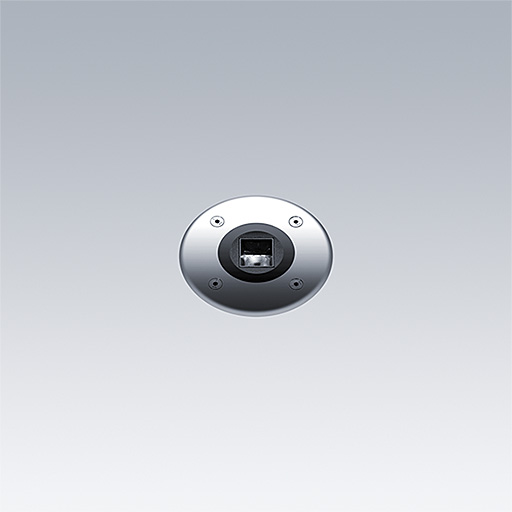

Cesar Opera, drive over small a floor recessed, architectural LED luminaire for decorative facade lighting, narrow beam distribution. Fixed output LED driver. Class I electrical, IP67, Impact strength: IK10. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +50°C. Complete with 4000K LED.

Dimensions: Ø187 x 175 mm
Luminaire input power: 3.7 W
Luminaire luminous flux: 191 lm
Luminaire efficacy: 52 lm/W
Weight: 1.86 kg

Mode selection
    • CE
    • IK10
    • IP67
    • Electrical class I

    ▼ Photometry

    Photometric configuration
