  • Cesar Opera, walk over — CESAR OPERA XL WO 5L RGBW 930 MB PWM SS

Cesar Opera, walk over / CESAR OPERA XL WO 5L RGBW 930 MB PWM SS

96700997

▼ Data Sheet

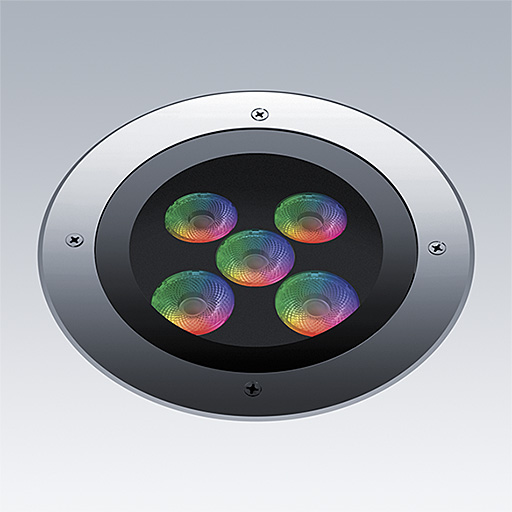

Cesar Opera, walk over RGBW a floor recessed, architectural LED luminaire for decorative facade lighting, medium beam distribution. Fixed output LED driver. Class III electrical, IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +37°C. Complete with RGBW LEDs.

Dimensions: Ø280 x 245 mm
Luminaire input power: 30.4 W
Luminaire luminous flux: 1122 lm
Luminaire efficacy: 37 lm/W
Weight: 7.01 kg

Mode selection
    • CE
    • IK09
    • IP67
    • SC3 - Protection Class 3

    ▼ Photometry

    Photometric configuration

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Step 1: Technical data
    (lm)
    (m)
    (m)
    (%)
    Step 2: Room Data
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
