  • Cesar Opera, walk over — CESAR OPERA L WO 3L RGBW MB PWM SS

Cesar Opera, walk over / CESAR OPERA L WO 3L RGBW MB PWM SS

96701152

▼ Data Sheet

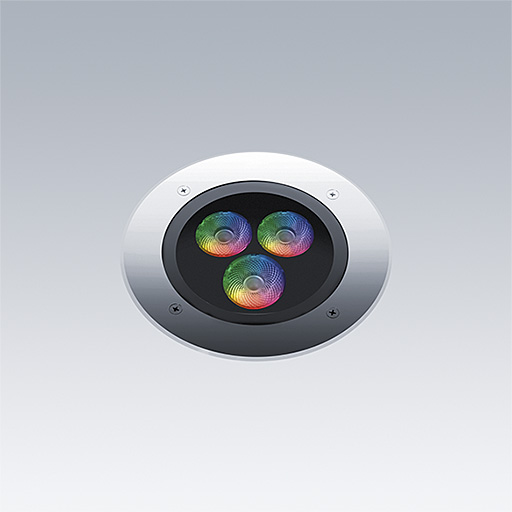

Cesar Opera, walk over RGBW a floor recessed, architectural LED luminaire for decorative facade lighting, medium beam distribution. Fixed output LED driver. Class III electrical, IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +40°C. Complete with RGBW LEDs.

Dimensions: Ø200 x 240 mm
Luminaire input power: 19.8 W
Luminaire luminous flux: 639 lm
Luminaire efficacy: 32 lm/W
Weight: 3.36 kg

Mode selection
    • CE
    • IK09
    • IP67
    • SC3 - Protection Class 3
