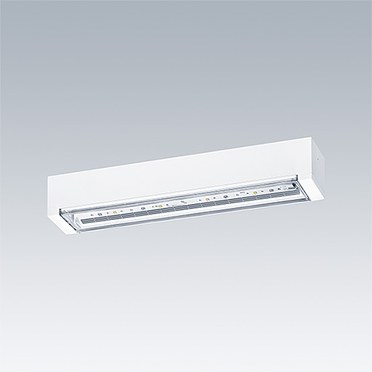

Voyager One
Combining the best of 2 worlds: safety luminaire & safety sign luminaire in one
- As well as being a high-performing safety luminaire, Voyager One can also fulfil the requirements of a safety sign luminaire. It’s two products in one
- Voyager One is an ultra-slim emergency luminaire that also achieves high levels of protection. The luminaire balances a simple blade appearance with IP65 protection against dust and moisture
- Thorn stands for quality and practical products. With this in mind, we make sure installation of luminaires is as easy as possible. The screw-free housing is easy to assemble, and accessories are easy to attach
Materials and Finish
Housing: white polycarbonate
Cover: transparent polycarbonate
Installation and Mounting
Tool-less 'Click' mounting after fitting the housing base. Click adapter for wall surface mounting within scope of delivery.
New Product
LumExpress Product
eControl Product
▼ Voyager One Surface mounted
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER ONE MS ANT E3 WH IP65 | LED | 0.50 | 96631596 | ||||||
| VOYAGER ONE MS ANT E3T WH IP65 | LED | 0.50 | 96631597 | ||||||
| VOYAGER ONE MS ANT ECC WH IP65 | LED | 0.40 | 96631599 | ||||||
| VOYAGER ONE MS ANT ECS WH IP65 | LED | 0.40 | 96631600 | ||||||
| VOYAGER ONE MS ANT HP ECC WH IP65 | LED | 0.60 | 96631601 | ||||||
| VOYAGER ONE MS ANT HP ECS WH IP65 | LED | 0.60 | 96631602 | ||||||
| VOYAGER ONE P MS ANT E3D WH IP65 | LED | 0.60 | 96631598 | ||||||
| VOYAGER ONE P MS ANT ECD WH IP65 | LED | 0.40 | 96632900 | ||||||
| VOYAGER ONE P MS ANT ECP WH IP65 | LED | 0.40 | 96632905 |
▼ Voyager One Contus
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER ONE CON ANT E3 S WH IP65 | LED | 0.65 | 96636588 | ||||||
| VOYAGER ONE CON ANT E3T S WH IP65 | LED | 0.65 | 96636589 | ||||||
| VOYAGER ONE CON ANT ECC WH IP65 | LED | 0.50 | 96636594 | ||||||
| VOYAGER ONE CON ANT HP ECC WH IP65 | LED | 0.61 | 96636595 | ||||||
| VOYAGER ONE P CON ANT E3D WH IP65 | LED | 0.63 | 96636590 | ||||||
| VOYAGER ONE P CON ANT ECD WH IP65 | LED | 0.52 | 96636591 | ||||||
| VOYAGER ONE P CON ANT ECP WH IP65 | LED | 0.54 | 96636592 |
▼ Voyager One Accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| VOYAGER ONE 115 MS SM-S | 0.70 | 96631604 | |||||||
| VOYAGER ONE 150 MS SM-S | 0.90 | 96631603 | |||||||
| VOYAGER ONE ANT HC LENSES | 0.01 | 96631631 | |||||||
| VOYAGER ONE ESC LENSES | 0.01 | 96631607 | |||||||
| VOYAGER ONE FSR WH | 0.10 | 96631605 | |||||||
| VOYAGER ONE IP65 MEMBRAN | 0.00 | 96631606 | |||||||
| VOYAGER STYLE / ONE MSC-CORD25 | 0.20 | 96631617 | |||||||
| VOYAGER STYLE / ONE MSC-R05 | 0.13 | 96631618 | |||||||
| VOYAGER STYLE 150 / ONE BP GRID | 1.64 | 96631620 | |||||||
| VOYAGER STYLE 150 / ONE MS90° | 0.33 | 96631621 |
▼ Voyager One Spares
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Voyager One ACCU 3h | 0.14 | 59010596 | |||||||
| Voyager One Ballast E3D | 0.07 | 59010727 | |||||||
| Voyager One Ballast ECC HP | 0.70 | 59010601 | |||||||
| Voyager One Ballast ECD | 0.06 | 59011001 | |||||||
| Voyager One Ballast ECP | 0.06 | 59011004 |
