  • Voyager Star — VOYAGER STAR MSC ANT ECC SR

Voyager Star / VOYAGER STAR MSC ANT ECC SR

96631654

▼ Data Sheet

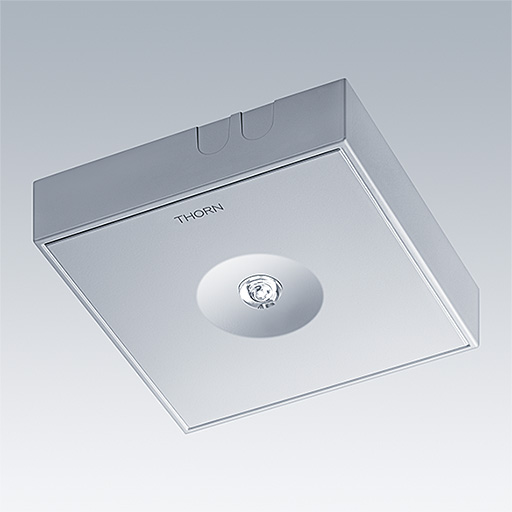

High performance, surface mounted LED emergency lighting luminaire, Luminaire for central emergency light supply, with circuit monitoring, without single monitoring of the luminaire with open area optic. Luminaire in maintained mode. Housing: die-cast aluminium, powder coated silver grey (close to RAL 9006). Gear tray: galvanised sheet steel. Lens: polycarbonate. IP40, Ceiling surface-mounted luminaire. Luminaire can be installed quickly and maintained without tools. Electrical connection (230VAC) via maximum 2.5mm² cable, loop in - loop out possible. Optimum thermal management via heat sink. Maintained mode: -20°C to +35°C, non-maintained mode: -20°C to +40°C; power supply: 220-240 V AC (+/- 10%) 50-60 Hz; 176-280 V DC Complete with LEDs..

Luminaire input power: 3 W
Dimensions: 146 x 146 x 34 mm
Weight: 1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:200 lm
  • Total emergency luminous flux:200 lm
  • Luminaire efficacy*:67 lm/W
  • Ballast:1 x 00156480 DRV IL EC 3.5W 700mA 7.5V F
  • Rated median useful life*: 50000h at 25°C
  • Luminaire input power*:3 W Power factor = 0.46
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • CE
  • Hfree
  • IP40
  • Electrical class I

▼ Photometry

Photometric configuration
