College 2

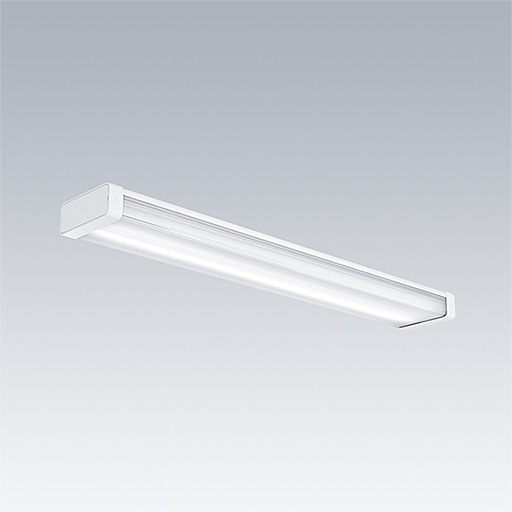

Contemporary range of high performance linear LED prismatic luminaires for surface, suspended, continuous row and track mounting

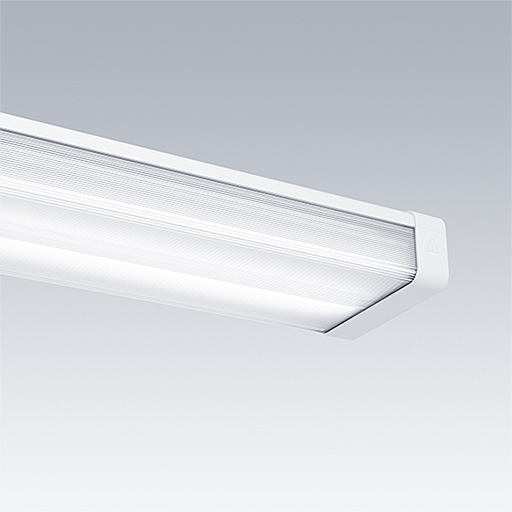

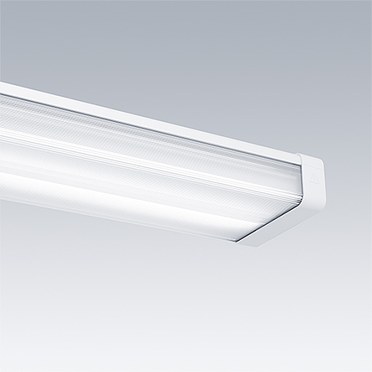

- LEDs with primary optic and foil behind a reeded polycarbonate diffuser in tough polycarbonate, giving precise light control and good impact resistance

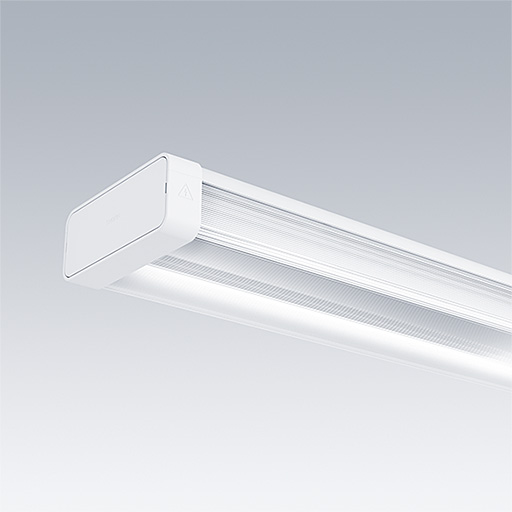

- Diffuser held by interlocking feature with spine and two part clip-in end cap (patent applied for) which can be locked using hidden screws for enhanced security and vandal/impact resistance
- Removable hinged geartray (patent applied for) allowing quick & safe installation / wiring, with ease of access for future maintenance or upgrade (body of luminaire can remain in place)
- Unique patent pending hidden connector (article code 96800051 ordered separately) enabling luminaires to be mounted in continuous rows either end to end or with infill panels (ordered separately, see accessories) to suit the space.
- Comprehensive range of DALI 2 wired and Casambi wireless sensor/control options available to give flexible lighting control and enhance energy savings
- Versions adapted for mounting onto Contus track available which can be mounted straight out of the box within seconds
Materials and Finish
Body and gear tray: white galvanised prepainted steel.
End caps: polycarbonate.
Diffuser: precision extruded prismatic polycarbonate.
Contus adapter: pre-coated roll form steel, white (similar to RAL9016).
Installation and Mounting
Four cable entry holes in the back of the spine and optional cable/conduit entry through each end cap (All suitable for M20 glands/conduit)
Fitting supplied with sealing grommets and 'quick-fix' horseshoe sliding washers for direct screw fixing to surface.
Standard BESA fixings provided in spine at 600mm centres.

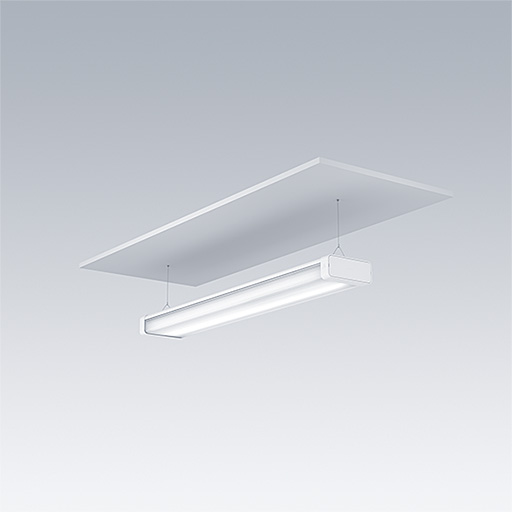

Can be suspended using the optional suspension kit (article code 96800050 ordered separately).
Can be mounted using suitable M12 rod or threaded bar (supplied by others) in conjunction with the brackets and screws from the suspension kit (article code 96800050 ordered separately).
Can be connected to other luminaires and infill panels using the optional continuous row connector kit (article code 96800051 ordered separately).
Loop in/out wiring is possible with provided 2 x 2.5mm² piano key terminal blocks (no. of ways dependent on version ordered).
Contus track adapted versions come pre-assembled, ready to fit quickly and easily with twist & lock mechanical/electrical connections.
