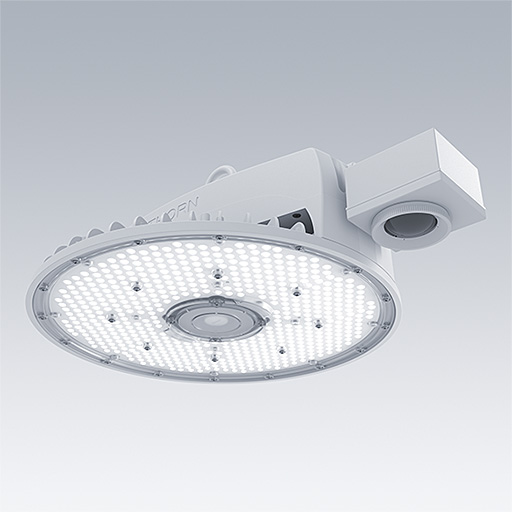

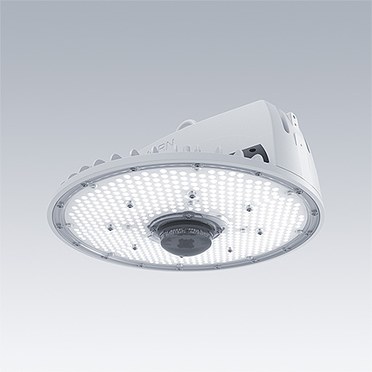

HiPak Gen4
The new generation of Thorn’s innovative industrial high bay luminaire offers stunning performance and a compelling ROI
- Introducing our new high bay luminaire with two light distributions: wide beam for open spaces and rack beam for high shelves. Illuminate your space with precision and efficiency.
- Highly efficient one-for-one replacement for conventional industrial luminaires – and with a higher efficacy than its predecessors, it promises a quicker payback than ever.
- With three sizes and six lumen outputs ranging up to 35000 lm, HiPak is an ideal option for point-for-point replacements on retrofit projects.
- With wide beam (WB) and rack beam (RK) light distributions available, and specially designed reflectors, HiPak is also suitable for applications such as retail, where appearance and visual comfort are high priorities.
- HiPak enables greater energy savings through DALI versions, and motion and daylight sensor integration. Emergency option is also available.
- For even higher energy-saving potential, a sensor can also be combined with basicDIM wireless. This offers a simple and convenient way to connect the luminaires wirelessly across our portfolio.
Materials and Finish
Housing: Die cast aluminium (RAL 9006)
Lens/Diffuser: Polycarbonate
Installation and Mounting
All luminaires are suitable for single point suspension. All wide beam luminaires (WB) are supplied with a mounting hook as standard (chain to be ordered separately). For rack beam luminaires (RK) and sensor variants it is recommended to use the fixed rod suspension or surface wall mounting accessory (to be ordered separately). Mounting accessories to be ordered separately: stirrup for wall mounting, rod suspension for pendant mounting, wire suspension and catenary suspension. All luminaires are supplied pre-wired with a quick connector plug.
- New Product
New Product
LumExpress Product
eControl Product
▼ HiPak, fixed output
Description | Catalogue No. | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|---|
HIPAK G4 L LED30000-840 WB HF QC5 | E7218832 | LED | 5.22 | 96636210 | ||||||
HIPAK G4 L LED35000-840 WB HF QC5 | E7218835 | LED | 5.22 | 96636211 | ||||||
HIPAK G4 M LED20000-840 WB HF QC5 | E7218828 | LED | 4.17 | 96636208 | ||||||
HIPAK G4 M LED25000-840 WB HF QC5 | E7218830 | LED | 4.18 | 96636209 | ||||||
HIPAK G4 S LED10000-840 WB HF QC5 | E7218824 | LED | 3.18 | 96636206 | ||||||
HIPAK G4 S LED15000-840 WB HF QC5 | E7218826 | LED | 3.45 | 96636207 |
▼ HiPak dimmable, HFI (Dali-2)
Description | Catalogue No. | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|---|
HIPAK G4 L LED30000-840 WB HFI QC5 | E7218840 | LED | 5.23 | 96636373 | ||||||
HIPAK G4 L LED35000-840 WB HFI QC5 | E7218841 | LED | 5.23 | 96636374 | ||||||
HIPAK G4 M LED20000-840 WB HFI QC5 | E7218836 | LED | 4.18 | 96636362 | ||||||
HIPAK G4 M LED25000-840 WB HFI QC5 | E7218837 | LED | 4.18 | 96636363 | ||||||
HIPAK G4 S LED10000-840 WB HFI QC5 | E7218838 | LED | 3.18 | 96636371 | ||||||
HIPAK G4 S LED15000-840 WB HFI QC5 | E7218839 | LED | 3.46 | 96636372 |
▼ HiPak dimmable, HFIX (Dali-2 with D4i)
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
HIPAK G4 L LED30000-840 WB HFIX QC5 | LED | 5.23 | 96636472 | ||||||
HIPAK G4 L LED35000-840 WB HFIX QC5 | LED | 5.23 | 96636473 | ||||||
HIPAK G4 M LED20000-840 WB HFIX QC5 | LED | 4.17 | 96636470 | ||||||
HIPAK G4 M LED25000-840 WB HFIX QC5 | LED | 4.18 | 96636471 | ||||||
HIPAK G4 S LED10000-840 WB HFIX QC5 | LED | 3.18 | 96636468 | ||||||
HIPAK G4 S LED15000-840 WB HFIX QC5 | LED | 3.55 | 96636469 |
▼ HiPak Accessories
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
HIPAK G4 AL Refractor L(1SET=5units) | 1.03 | 96637576 | |||||||
HIPAK G4 AL Refractor M(1SET=5units) | 0.80 | 96637575 | |||||||
HIPAK G4 AL Refractor S(1SET=5units) | 0.63 | 96637574 | |||||||
HIPAK G4 MWS Remote | 0.12 | 96637572 | |||||||
HIPAK G4 PC Refractor L(1SET=5units) | 0.86 | 96637579 | |||||||
HIPAK G4 PC Refractor M(1SET=5units) | 0.55 | 96637578 | |||||||
HIPAK G4 PC Refractor S(1SET=5units) | 0.63 | 96637577 | |||||||
HIPAK G4 ROD 1m (1SET=5units) | 0.98 | 96637573 | |||||||
HIPAK G4 suspension bracketL(1SET=5unit) | 0.61 | 96637582 | |||||||
HIPAK G4 suspension bracketM(1SET=5unit) | 0.52 | 96637581 | |||||||
HIPAK G4 suspension bracketS(1Set=5unit) | 0.45 | 96637580 |
