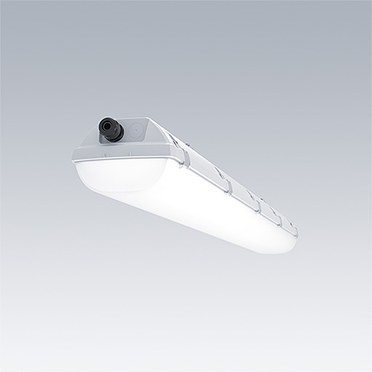

Xetaro Linear
XETARO is a Category 3 ATEX luminaire for Zone 2/22, designed for hazardous environments with explosion risks.
- For use in environments where there is a risk of explosion of gases, dusts and flammable vapours.
- Suitable for Zone 2 (gases) and Zone 22 (dusts) — designed for occasional or short-term presence in explosive atmospheres.
- Resistant to water, dust, dirt and impact: This robust luminaire is resistant to the elements, with high IP66 and IK10 rating.
- Emergency and Dimming options available.
- Accessories include a metal grid to protect XETARO against mechanical damage and side bracket.
Materials and Finish
Body: grey PC (high mechanical resistance, UV stability, RAL 7035)
Diffuser: translucent PC (high mechanical resistance, UV stability)
Reflector: steel sheet, white (RAL 9003)
Clips: stainless steel + polyamide
Sealing: polyurethane (PUR), foam-filled base groove
Installation and Mounting
Approved for indoor use or in canopied outdoor areas. Suitable for ceiling and wall mounting (both vertically and horizontally).
Suitable for direct surface. Quick-fix brackets supplied for surface mounting and chain suspension:
Quick release stainless steel clips with anti tamper feature.
Connection: screwless five-pole terminal block
Cable glands: M20X1,5, ATEX thread
- New Product
New Product
LumExpress Product
eControl Product
▼ Xetaro Linear
| Description | Catalogue No. | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| XETARO L 11000-840 MB HF | E7220467 | LED | 4.40 | 96701882 | ||||||
| XETARO L 5500-840 MB HF | E7220465 | LED | 4.20 | 96701879 | ||||||
| XETARO L 8100-840 MB HF | E7220466 | LED | 4.20 | 96701881 | ||||||
| XETARO M 4400-840 MB HF | E7220463 | LED | 3.30 | 96701878 | ||||||
| XETARO M 6600-840 MB HF | E7220464 | LED | 3.30 | 96701880 |
▼ Xetaro Linear, emergency
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| XETARO L 11000-840 MB HF E3 | LED | 4.20 | 96701887 | ||||||
| XETARO L 5500-840 MB HF E3 | LED | 4.20 | 96701884 | ||||||
| XETARO L 8100-840 MB HF E3 | LED | 4.20 | 96701886 | ||||||
| XETARO M 4400-840 MB HF E3 | LED | 3.30 | 96701883 | ||||||
| XETARO M 6600-840 MB HF E3 | LED | 3.30 | 96701885 |
▼ Xetaro Linear, dimmable
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| XETARO L 11000-840 MB HFI | LED | 4.40 | 96701892 | ||||||
| XETARO L 5500-840 MB HFI | LED | 4.20 | 96701889 | ||||||
| XETARO L 8100-840 MB HFI | LED | 4.20 | 96701891 | ||||||
| XETARO M 4400-840 MB HFI | LED | 3.30 | 96701888 | ||||||
| XETARO M 6600-840 MB HFI | LED | 3.30 | 96701890 |
▼ Xetaro Linear, dimmable emergency
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| XETARO L 11000-840 MB HFI E3 | LED | 4.20 | 96701897 | ||||||
| XETARO L 5500-840 MB HFI E3 | LED | 4.20 | 96701894 | ||||||
| XETARO L 8100-840 MB HFI E3 | LED | 4.20 | 96701896 | ||||||
| XETARO M 4400-840 MB HFI E3 | LED | 3.30 | 96701893 | ||||||
| XETARO M 6600-840 MB HFI E3 | LED | 3.30 | 96701895 |
▼ Xetaro Linear, accessories
| Description | Catalogue No. | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SUSPENSION CHAIN | E7070430 | 0.10 | 96502605 | |||||||
| XETARO Protective cage 6400lm | 2.80 | 96701899 | ||||||||
| XETARO Protective cage 8000-11000lm | 3.80 | 96701900 | ||||||||
| XETARO Side hanger fixing bracket set | 1.70 | 96701898 |
