Omega Circular

  • Omega Circular
  • Omega Circular

The Omega Circular is an extension to the Omega family which offers the freedom to change the geometry of the space

  • Freedom of design: When you are looking for something different, we can help create a considered design with all new shapes
  • Full family: There is a 300mm, 400mm and 500mm diameter product which offers you the choice to use this family in all kinds of spaces

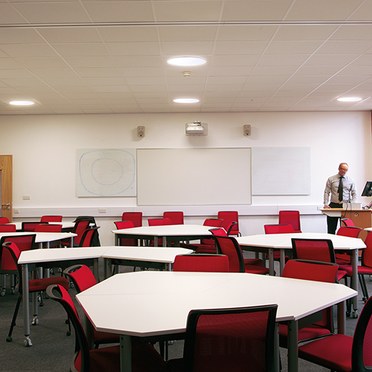

  • Application: Could replace a 600x600mm product in a wide variety of spaces in an office or school
  • Unique installation: Created to fit exactly the tools a contractor would have in their toolbox. With the simple twist and lock mechanism we have made the installation simple and easy to complete
  • Emergency option on special request

Materials and Finish

Body: aluminium and steel, white (RAL9016)
Diffuser: PMMA opal

Installation and Mounting

Suitable for semi recessed using twist and lock function, surface mounted can be achieved with this mechanism also.

New Product
LumExpress Product
eControl Product

Omega Circular

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
OMEGA C LED1500-830 HF R300201551LED2.5096631488
OMEGA C LED1500-840 HF R300201551LED2.5096631489
OMEGA C LED2800-830 HF R400332800E7077810LED3.3096627771
OMEGA C LED2800-840 HF R400332800E7077809LED3.3096627770
OMEGA C LED3200-830 HF R500423537E7077814LED4.5096627779
OMEGA C LED3200-840 HF R500423537E7077813LED4.5096627778

Omega Circular emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
OMEGA C LED2800-830 HF E3 R400332800LED3.3096627775
OMEGA C LED2800-840 HF E3 R400332800LED3.3096627774
OMEGA C LED3200-830 HF E3 R500423537LED4.5096627783
OMEGA C LED3200-840 HF E3 R500423537LED4.5096627782

Omega Circular dimmable

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
OMEGA C LED1500-830 HFIX R300201551LED2.5096631490
OMEGA C LED1500-840 HFIX R300201551LED2.5096631491
OMEGA C LED2800-830 HFIX R400332800E7077812LED3.3096627773
OMEGA C LED2800-840 HFIX R400332800E7077811LED3.3096627772
OMEGA C LED3200-830 HFIX R500423537E7077816LED4.5096627781
OMEGA C LED3200-840 HFIX R500423537E7077815LED4.5096627780

Omega Circular dimmable, emergency

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
OMEGA C LED2800-830 HFIX E3 R400332800LED3.3096627777
OMEGA C LED2800-840 HFIX E3 R400332800LED3.3096627776
OMEGA C LED3200-840 HFIX E3 R500423537LED4.5096627784

Omega Circular, accessories

Description   Wt (kg)SAP Code
