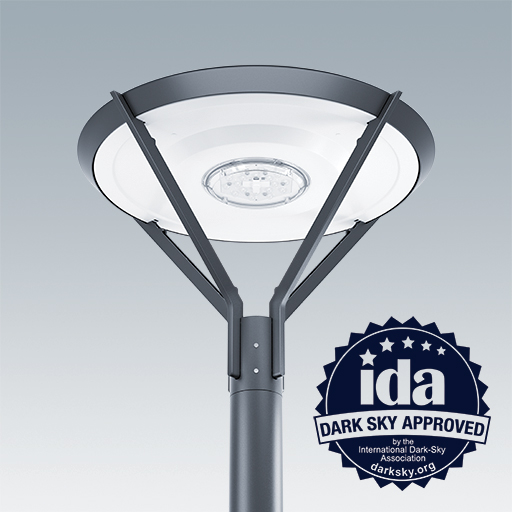

Avenue F2
Post top lantern with a distinctive design and lighting signature
- IDA Dark Sky Approved
- *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered.
- With conical bowl and prismatic crown for reduced glare and distinctive appearance
- With flat enclosure for minimum upward lighting, preserving dark skies
- Connectivity with Zhaga socket
- Choice of dimming options and controls to reduce energy consumption and preserve dark skies
- OTHER OPTIONS ARE AVAILABLE (colour temperature, controls, colour...). See myProduct for configuration options
Materials and Finish
Base and arms: die cast aluminium (AS9U3, LM24 equivalent, EN AC-46000, standard corrosion class C3).
Canopy: spun aluminium
Finish: texturised anthracite (close to RAL7043), Choice of RAL colors via Myproduct
Diffuser: clear UV stabilised PC
Screw fixings: stainless steel
Installation and Mounting
Suitable for mounting on top Ø76mm or Ø60mm, spigot internal length: 100mm. Recommended height: 3/4m. Equipped with cable gland or pre-wired with HO5VVF cable. Spare drivers and LED modules available. Delivered ready to install, complete with factory fitted integral gear tray, all supplied in a single carton.
New Product
LumExpress Product
eControl Product

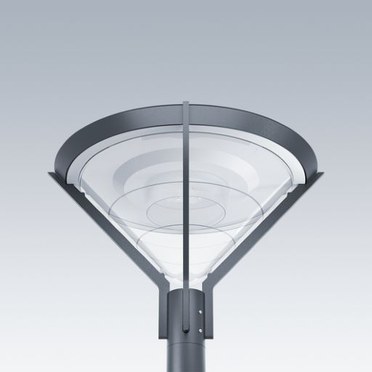

▼ Avenue F2 with conical bowl
▼ Avenue F2 with conical bowl and frosted crown
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| AVF 18L35-730 RS FR BS 3550 CL2 N4M -> | 21 | 2348 | LED | 9.70 | 96270657 | ||||
| AVF 18L35-730 WST FR BS 3550 CL2 N4M -> | 21 | 2362 | LED | 9.70 | 96270660 | ||||
| AVF 18L35-740 RS FR BS 3550 CL2 N4M -> | 21 | 2576 | LED | 9.40 | 96270651 | ||||
| AVF 18L35-740 WST FR BS 3550 CL2 N4M -> | 21 | 2591 | LED | 9.70 | 96270654 | ||||
| AVF 18L50-730 RS FR BS 3550 CL2 N4M -> | 31 | 3234 | LED | 9.70 | 96270658 | ||||
| AVF 18L50-730 WST FR BS 3550 CL2 N4M -> | 31 | 3253 | LED | 9.70 | 96270661 | ||||
| AVF 18L50-740 RS FR BS 3550 CL2 N4M -> | 31 | 3547 | LED | 9.40 | 96270652 | ||||
| AVF 18L50-740 WST FR BS 3550 CL2 N4M -> | 31 | 3568 | LED | 9.70 | 96270655 | ||||
| AVF 18L70-730 RS FR CL2 CON T60 ANT | 41 | 4338 | LED | 9.00 | 96672104 | ||||
| AVF 18L70-730 RS FR BS 3550 CL2 N4M -> | 41 | 4338 | LED | 9.70 | 96270659 | ||||
| AVF 18L70-730 WST FR BS 3550 CL2 N4M | 41 | 4363 | LED | 9.70 | 96270662 | ||||
| AVF 18L70-740 RS FR BS 3550 CL2 N4M -> | 41 | 4758 | LED | 9.40 | 96270653 | ||||
| AVF 18L70-740 WST FR BS 3550 CL2 N4M -> | 41 | 4786 | LED | 9.70 | 96270656 |
▼ Avenue F2 with flat enclosure
| Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| AVF F 18L105-730 RSC CL2 CON T60 ANT | 59 | 6713 | LED | 7.57 | 96672120 | |||||
| AVF F 18L35-730 RSC CL2 CON T60 ANT | 21 | 2603 | E7749584 | LED | 7.55 | 96672117 | ||||
| AVF F 18L35-730 RSC CL2 CON T60 BK | 21 | 2603 | LED | 7.55 | 96672110 | |||||
| AVF F 18L50-730 RSC CL2 CON T60 ANT | 30 | 3586 | E7749585 | LED | 7.55 | 96672118 | ||||
| AVF F 18L70-730 CST CL2 N4M T60 ANT | 41 | 4678 | LED | 7.95 | 96672107 | |||||
| AVF F 18L70-730 CST CL2 N5M T60 ANT | 41 | 4678 | LED | 8.01 | 96672108 | |||||
| AVF F 18L70-730 CST CL2 N6M T60 ANT | 41 | 4678 | LED | 8.07 | 96672109 | |||||
| AVF F 18L70-730 RSC CL2 CON T60 ANT | 41 | 4810 | E7749586 | LED | 7.55 | 96672119 |
