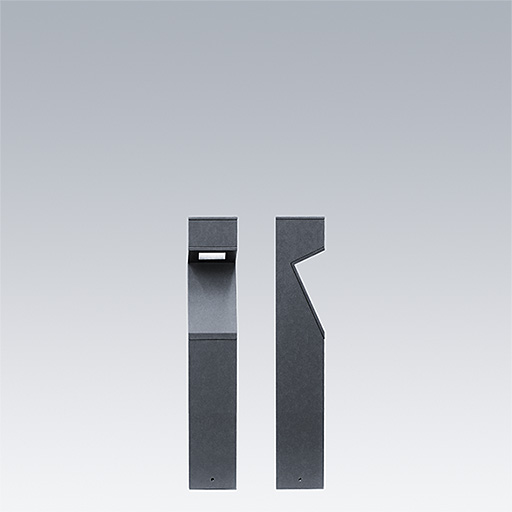

Axyl Geo

  • Axyl Geo

Axyl Geo is a bollard offering an premium distinctive design for building surround applications

  • Premium design bollard available in two heights (600, 950mm) and four standard Thorn's colours (grey, anthracite, black, white)
  • Ideal for pathway, wayfinding with an 180° light distribution created by a specific prismatic glass. For enhanced visual comfort, an anti-glare shield accessory is available (96700532)
  • Available in 2700K, 3000K, 4000K and CRI90
  • Axyl Geo is available with DALI2 connectivity on-board

Materials and Finish

Die-cast aluminium housing.
Prismatic toughened glass.
Stainless steel screws.
Silicone gaskets.
Double Powder Paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).

Installation and Mounting

Installation method available :
- Installation on concrete ground (fixing anchors M6 not delivered with product)
- Recessed installation with flange accessory to be ordered separately (96700572)
Delivered pre-wired and with IP68 gel connector.
Maximum cable size : 5x1mm² - 5x1.5mm²

New Product
LumExpress Product
eControl Product

▼ Axyl Geo

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
AXYL GEO H600 1L 927 A/S HFX ANT16552LED6.9696700511
AXYL GEO H600 1L 927 A/S HFX BK16552LED6.9696700509
AXYL GEO H600 1L 927 A/S HFX GY16552LED6.9696700510
AXYL GEO H600 1L 927 A/S HFX WH16552LED6.9696700508
AXYL GEO H600 1L 930 A/S HFX ANT16587LED6.9696700519
AXYL GEO H600 1L 930 A/S HFX BK16587LED6.9696700517
AXYL GEO H600 1L 930 A/S HFX GY16587LED6.9696700518
AXYL GEO H600 1L 930 A/S HFX WH16587LED6.9696700516
AXYL GEO H600 1L 940 A/S HFX ANT16609LED6.9696700515
AXYL GEO H600 1L 940 A/S HFX BLK16609LED6.9696700513
AXYL GEO H600 1L 940 A/S HFX GRY16609LED6.9696700514
AXYL GEO H600 1L 940 A/S HFX WH16609LED6.9696700512
AXYL GEO H950 1L 927 A/S HFX ANT16552LED6.9696700523
AXYL GEO H950 1L 927 A/S HFX BK16552LED6.9696700521
AXYL GEO H950 1L 927 A/S HFX GY16552LED6.9696700522
AXYL GEO H950 1L 927 A/S HFX WH16552LED6.9696700520
AXYL GEO H950 1L 930 A/S HFX ANT16587LED6.9696700531
AXYL GEO H950 1L 930 A/S HFX BK16587LED6.9696700529
AXYL GEO H950 1L 930 A/S HFX GY16587LED6.9696700530
AXYL GEO H950 1L 930 A/S HFX WH16587LED6.9696700528
AXYL GEO H950 1L 940 A/S HFX ANT16609LED6.9696700527
AXYL GEO H950 1L 940 A/S HFX BK16609LED6.9696700525
AXYL GEO H950 1L 940 A/S HFX GY16609LED6.9696700526
AXYL GEO H950 1L 940 A/S HFX WH16609LED6.9696700524

▼ Axyl Geo, accessories

Description   Wt (kg)SAP Code
AXYL GEO FLANGE D1200.5396700572
AXYL GEO GLARE BK0.0296700532
