  • Axyl Geo — AXYL GEO H600 1L 940 A/S HFX WH

Axyl Geo / AXYL GEO H600 1L 940 A/S HFX WH

96700512

▼ Data Sheet

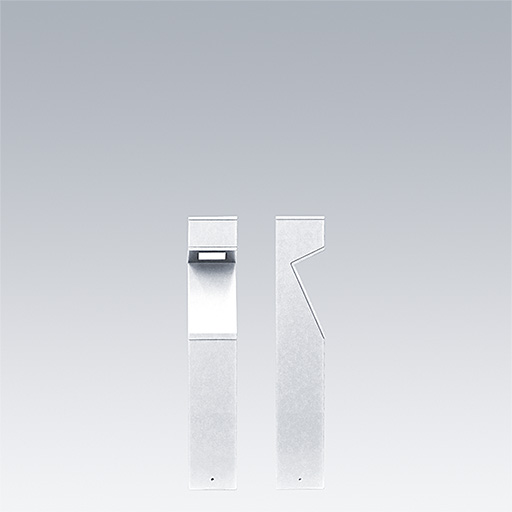

Axyl Geo, a free-standing, decorative LED bollard with asymmetrical distribution. Class I electrical.. DALI-2 dimmable LED driver. , IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +45°C. Complete with 4000K LED..

Dimensions: 120 x 120 x 600 mm
Luminaire input power: 15.8 W
Luminaire luminous flux: 609 lm
Luminaire efficacy: 39 lm/W
Weight: 6.96 kg

Mode selection
    • CE
    • IK06
    • IP65
    • Electrical class I

    ▼ Photometry

    Photometric configuration
