EP 445

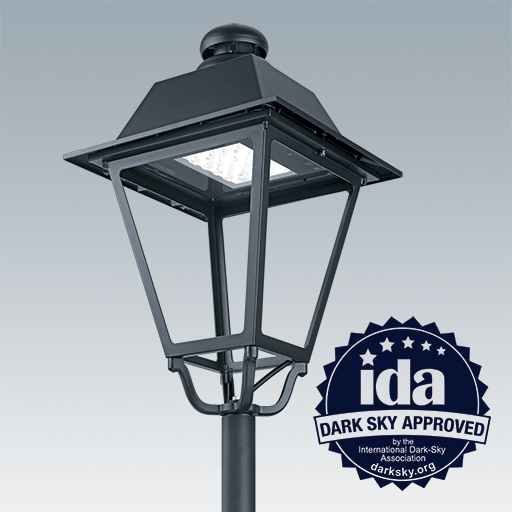

A 19th century style LED lantern to refurbish traditional streets and historic areas with a durable energy efficient solution
- IDA Dark Sky Approved
- *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered.
- Traditional black lantern with coordinated columns and brackets to seamlessly integrate into the environment
- High quality optical system to increase performance significantly for the replacement of old light sources, 4000K and 3000K colour temperature as standard, 2200K available on request for areas requiring a particularly warm ambience
- Low cost of ownership: lifetime 100,000h (25°C, L80), integrated dimming for further energy savings
- Quick installation with choice of suspended and post top mountings to cover applications ranging from residential streets to city squares
Materials and Finish
Lantern body and top: die-cast aluminum , finish black (RAL 9005) textured, standard corrosion class: C3.
Gasket: silicone
Enclosure: extra clear glass 4 mm
Installation and Mounting
Post top or suspended mounting, recommended height up to 6m.
Post top:
On steel Meleze columns Ø 60mm with adaptor (code 96629564).
On die-cast columns with threaded spigot.
Suspended:
Fixing on Andely and Le Mail brackets or consoles through Ø 27G threaded tube.
Universal joint code 96262636 allowing compensation of any possible default of verticality support in case of straight fixing.
Access to replaceable LED plate via 4 screws after opening the hinged canopy with 1 screw. Delivered in kit to be assembled through 3 easy steps. Pre-wiring to be added through a 4th additional step before installation on the pole, delivered with a 5m cable H07-RNF as standard for post top version, all supplied in one box. Complete with factory setting 700mA integrated Bi-Power dimming, switchable by the installer to 3 other dimming profiles, 525mA or 350mA, and no dimming.
▼ EP 445, narrow road optic, post top mounting
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
EP445 12L70-730 ND-A BPS CL2 W5M MTP | 28 | 2770 | LED | 9.70 | 96629544 | ||||
EP445 12L70-740 ND-A BPS CL2 W5M MTP | 28 | 2905 | LED | 9.70 | 96629545 | ||||
EP445 12L70-827 ND-A BPS CL2 W5M MTP | 28 | 2425 | LED | 9.70 | 96631748 | ||||
EP445 24L70-730 ND-A BPS CL2 W5M MTP | 53 | 5595 | LED | 9.70 | 96629546 | ||||
EP445 24L70-740 ND-A BPS CL2 W5M MTP | 53 | 5870 | LED | 9.70 | 96629547 | ||||
EP445 24L70-827 ND-A BPS CL2 W5M MTP | 53 | 4875 | LED | 9.70 | 96631749 | ||||
EP445 36L70-730 ND-A BPS CL2 W5M MTP | 78 | 8290 | LED | 9.70 | 96631759 | ||||
EP445 36L70-740 ND-A BPS CL2 W5M MTP | 78 | 8695 | LED | 9.70 | 96631760 | ||||
EP445 36L70-827 ND-A BPS CL2 W5M MTP | 78 | 7340 | LED | 9.70 | 96631758 |
▼ EP 445, narrow road optic, suspended
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
EP445 12L70-730 ND-A BPS CL2 MSU | 28 | 2770 | LED | 8.70 | 96629556 | ||||
EP445 12L70-740 ND-A BPS CL2 MSU | 28 | 2905 | LED | 8.70 | 96629557 | ||||
EP445 12L70-827 ND-A BPS CL2 MSU | 28 | 2425 | LED | 8.70 | 96631754 | ||||
EP445 24L70-730 ND-A BPS CL2 MSU | 53 | 5595 | LED | 8.70 | 96629558 | ||||
EP445 24L70-740 ND-A BPS CL2 MSU | 53 | 5870 | LED | 8.70 | 96629559 | ||||
EP445 24L70-827 ND-A BPS CL2 MSU | 53 | 4875 | LED | 8.70 | 96631755 | ||||
EP445 36L70-730 ND-A BPS CL2 MSU | 78 | 8290 | LED | 8.70 | 96631768 | ||||
EP445 36L70-740 ND-A BPS CL2 MSU | 78 | 8695 | LED | 8.70 | 96631769 | ||||
EP445 36L70-827 ND-A BPS CL2 MSU | 78 | 7340 | LED | 8.70 | 96631767 |
▼ EP 445, street comfort optic, post top mounting
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
EP445 12L70-730 CD-A BPS CL2 W5M MTP | 28 | 2770 | LED | 9.70 | 96629548 | ||||
EP445 12L70-740 CD-A BPS CL2 W5M MTP | 28 | 2905 | LED | 9.70 | 96629549 | ||||
EP445 12L70-827 CD-A BPS CL2 W5M MTP | 28 | 2425 | LED | 9.70 | 96631750 | ||||
EP445 24L70-730 CD-A BPS CL2 W5M MTP | 53 | 5595 | LED | 9.70 | 96629550 | ||||
EP445 24L70-740 CD-A BPS CL2 W5M MTP | 53 | 5870 | LED | 9.70 | 96629551 | ||||
EP445 24L70-827 CD-A BPS CL2 W5M MTP | 53 | 4875 | LED | 9.70 | 96631751 | ||||
EP445 36L70-730 CD-A BPS CL2 W5M MTP | 78 | 8290 | LED | 9.70 | 96631762 | ||||
EP445 36L70-740 CD-A BPS CL2 W5M MTP | 78 | 8695 | LED | 9.70 | 96631763 | ||||
EP445 36L70-827 CD-A BPS CL2 W5M MTP | 78 | 7340 | LED | 9.70 | 96631761 |
▼ EP 445, street comfort optic, suspended
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
EP445 12L70-730 CD-A BPS CL2 MSU | 28 | 2770 | LED | 8.70 | 96629560 | ||||
EP445 12L70-740 CD-A BPS CL2 MSU | 28 | 2905 | LED | 8.70 | 96629561 | ||||
EP445 12L70-827 CD-A BPS CL2 MSU | 28 | 2425 | LED | 8.70 | 96631756 | ||||
EP445 24L70-730 CD-A BPS CL2 MSU | 53 | 5595 | LED | 8.70 | 96629562 | ||||
EP445 24L70-740 CD-A BPS CL2 MSU | 53 | 5870 | LED | 8.70 | 96629563 | ||||
EP445 24L70-827 CD-A BPS CL2 MSU | 53 | 4875 | LED | 8.70 | 96631757 | ||||
EP445 36L70-730 CD-A BPS CL2 MSU | 78 | 8290 | LED | 8.70 | 96631771 | ||||
EP445 36L70-740 CD-A BPS CL2 MSU | 78 | 8695 | LED | 8.70 | 96631772 | ||||
EP445 36L70-827 CD-A BPS CL2 MSU | 78 | 7340 | LED | 8.70 | 96631770 |
▼ EP 445, rotationally symmetric optic, post top mounting
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
EP445 12L70-730 ROTO BPS CL2 W5M MTP | 28 | 2770 | LED | 9.70 | 96629552 | ||||
EP445 12L70-740 ROTO BPS CL2 W5M MTP | 28 | 2905 | LED | 9.70 | 96629553 | ||||
EP445 12L70-827 ROTO BPS CL2 W5M MTP | 28 | 2425 | LED | 9.70 | 96631752 | ||||
EP445 24L70-730 ROTO BPS CL2 W5M MTP | 53 | 5595 | LED | 9.70 | 96629554 | ||||
EP445 24L70-740 ROTO BPS CL2 W5M MTP | 53 | 5870 | LED | 9.70 | 96629555 | ||||
EP445 24L70-827 ROTO BPS CL2 W5M MTP | 53 | 4875 | LED | 9.70 | 96631753 | ||||
EP445 36L70-730 ROTO BPS CL2 W5M MTP | 78 | 8290 | LED | 9.70 | 96631765 | ||||
EP445 36L70-740 ROTO BPS CL2 W5M MTP | 78 | 8695 | LED | 9.70 | 96631766 | ||||
EP445 36L70-827 ROTO BPS CL2 W5M MTP | 78 | 7340 | LED | 9.70 | 96631764 |
▼ EP 445 accessories
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
<EP445 LED ECL/PC | 1.80 | 96634047 | |||||||
EP445 D60 COL/ADAPTOR R9005TX | 0.80 | 96629564 | |||||||
EP445 D76 COL/ADAPTOR R9005TX | 0.90 | 96631773 |
