  • Axyl Geo — AXYL GEO H950 1L 940 A/S HFX ANT

Axyl Geo / AXYL GEO H950 1L 940 A/S HFX ANT

96700527

▼ Data Sheet

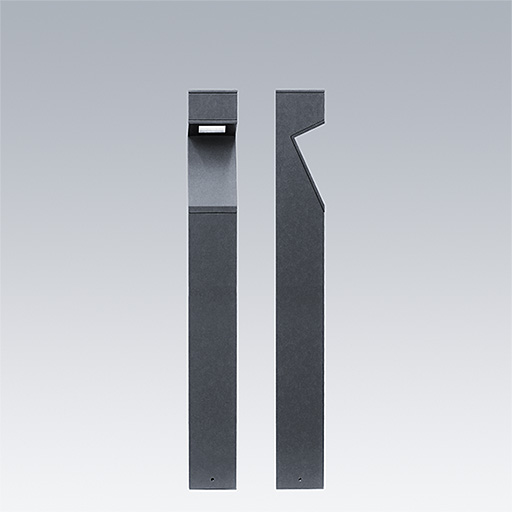

Axyl Geo, a free-standing, decorative LED bollard with asymmetrical distribution. Class I electrical.. DALI-2 dimmable LED driver. , IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +45°C. Complete with 4000K LED..

Dimensions: 120 x 120 x 950 mm
Luminaire input power: 15.8 W
Luminaire luminous flux: 609 lm
Luminaire efficacy: 39 lm/W
Weight: 6.96 kg

Mode selection
    • CE
    • IK06
    • IP65
    • Electrical class I

    ▼ Photometry

    Photometric configuration

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Step 1: Technical data
    (lm)
    (m)
    (m)
    (%)
    Step 2: Room Data
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
