Plurio / PLI F 24L35-722 R/S BS 3550 T60 CL2 ->

92916460 / E7748629

Data Sheet

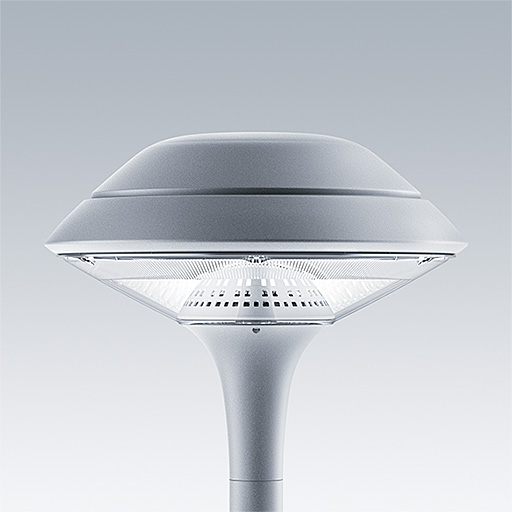

Plurio Indirect: A decorative post-top LED lantern with radially symmetric distribution. LED driver with 24 LEDs driven at 350mA. Class II electrical, IP66, IK08. Base: cast aluminium, powder coated light grey 150 (close to RAL9006). Canopy: flat shape, aluminium, textured light grey 150 (close to RAL9006). Diffuser: UV stabilised, clear polycarbonate with anti-glare prisms. Indirect, reflector based optic. Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Complete with 2200K LED. Post top mounting to Ø60mm column. Pre-wired with 4m cable.

Upward lighting emissions below 1%.

Dimensions: Ø601 x 487 mm
Luminaire input power: 26 W
Luminaire luminous flux: 2494 lm
Luminaire efficacy: 96 lm/W
Weight: 6.7 kg
Scx: 0.167 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2494 lm
  • Luminaire efficacy*:96 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 28003161 LCO 60/200-1050/100 o4a NF C EXC3
  • Correlated colour temperature*:2200 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L95 100000 h at 25 °C
  • Luminaire input power*:26 W
  • Dimming:SETBP
  • LED
  • CE
  • ENEC
  • ENEC11 +
  • GLedReP
  • IDA
  • IK08
  • IP66
  • Coastal_C5
  • LLedReP
  • SC2 - Protection Class 2
  • Ta=25
