Plurio / PLD R 18L70 WST BPSW CL2 N4M D60 L740

96260707 / E7753926

Data Sheet

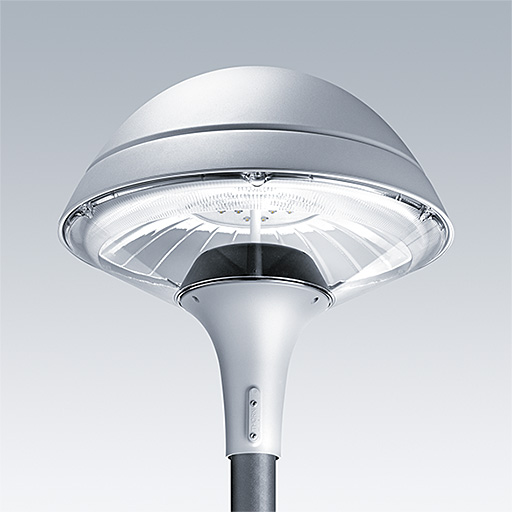

Decorative, post-top lantern with LED package with electronic driver. Class II electrical, IP66, IK08. Base in cast aluminium, powder coated silver-grey. Canopy in round shape, made from aluminium textured silver-grey (close to RAL9006). UV stabilised polycarbonate clear diffuser with anti-glare prisms. Internal wide street reflector. Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Supplied complete in one box. Complete with 4000K LED

To be post top mounted on a spigot of Ø60mm, length 75mm. Pre-cabled with 4m HO5-W F 2 x 1.5mm² cable.

Dimensions: Ø564 x 564 mm
Luminaire input power: 38.9 W
Weight: 7.8 kg
Scx: 0.073m²
Luminaire efficacy: 120 lm/W

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:4682 lm
  • Luminaire efficacy*:120 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L95 100000 h at 25 °C
  • Luminaire input power*:38.9 W
  • Dimming:BP2
  • LED
  • CE
  • GLedReP
  • IK08
  • IP66
  • LLedReP
  • SC2 - Protection Class 2
