  • Thor Bollard — TR B W 10L25 740 ASY CL2 MPL

Thor Bollard / TR B W 10L25 740 ASY CL2 MPL

96264266

▼ Data Sheet

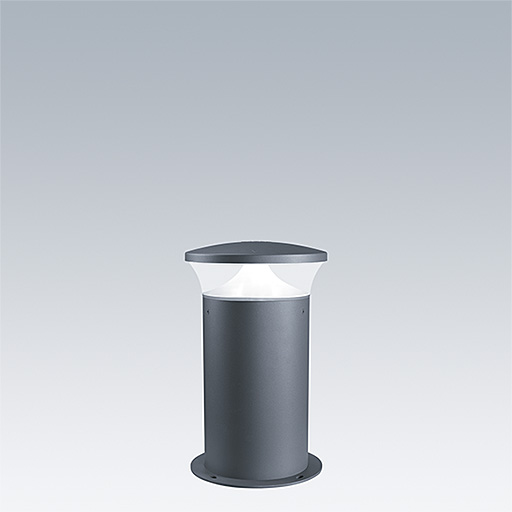

An elegant vandal resistant asymmetrical slim bollard with high performance optic. For Electronic, fixed output control gear. IP66 Electrical Class ll. Column and Base: aluminium (EW AW 6060). Canopy: die-cast aluminium (EN AC 44300). Diffuser: Clear anti UV polycarbonate. Gear Box: polycarbonate. Canopy and Column colour: powder coated anthracite (close to RAL7043) (close to RAL7043). Ready to install prewired luminaire. Connection box required, to be ordered separately. Complete with 4000K LED

Flange mounting: 4 x anchor bolts M14 (to be ordered separately), spacing: 200mm

Dimensions: 250 x 250 x 541 mm
Luminaire input power: 8.9 W
Weight: 9 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:840 lm
  • Luminaire efficacy*:94 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 96276908 DRV OS OT 20W 1.05A 38V D #4DIMLT2 G2 CE
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000 h at 25 °C
  • Luminaire input power*:8.9 W
  • Dimming:FO
  • LED
  • CE
  • GLedReP
  • IK10
  • IP66
  • Coastal_C5
  • LLedReP
  • Electrical class I
  • Ta=25
  • Ta=50°C
