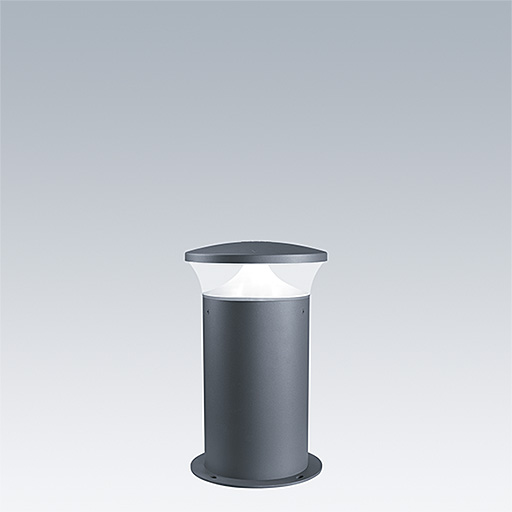

Thor Bollard / TR B W 10L25 730 R/S CL2 MPL
96264267
▼ Data Sheet
An elegant vandal resistant radially symmetric slim bollard with high performance optic. For Electronic, fixed output control gear. IP66 Electrical Class ll. Column and Base: aluminium (EW AW 6060). Canopy: die-cast aluminium (EN AC 44300). Diffuser: Clear anti UV polycarbonate. Gear Box: polycarbonate. Canopy and Column colour: powder coated anthracite (close to RAL7043) (close to RAL7043). Ready to install prewired luminaire. Connection box required, to be ordered separately. Complete with 3000K LED
Flange mounting: 4 x anchor bolts M14 (to be ordered separately), spacing: 200mm
Dimensions: 250 x 250 x 541 mm
Luminaire input power: 8.9 W
Weight: 9 kg
- LED
- CE
- GLedReP
- IK10
- IP66
- Coastal_C5
- LLedReP
- Electrical class I
- Ta=25
- Ta=50°C
