Cesar Amp Wall

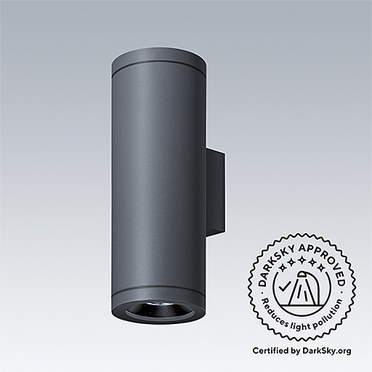

Simple but elegant design, Cesar Amp is a circular wall luminaires suitable for both outdoor and indoor applications.
- Circular wall light available in three sizes (small, medium, large) and four standard Thorn's colours (grey, anthracite, black, white)
- COB light source recessed within the luminaire housing, its optical system offers both visual comfort and excellent levels of illumination
- Available in 2700K, 3000K, 4000K and CRI90
- Cesar Amp Wall is available Non-Dim or with DALI2 connectivity (remote driver option) for Small and Medium Size. Available on-board DALI2 for Large Size
- Dark Sky International fixture seal of approval relates to ≤ 3000 K only with dimming capability and downward light only. Luminaires must be mounted as photometered
Materials and Finish
Die-cast and extruded aluminium housing.
Clear toughened glass.
Stainless steel A4 screws.
Silicone gaskets.
Double Powder Paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012)
Installation and Mounting
Small size suitable for wall mounting with 2 fixing points for accurate positioning.
Medium and Large size suitable for wall mounting with 3 oblong fixing points for positioning.
Fixing anchors and screw delivered only with Small product.
Cable size :
Small HF : 3x1mm² - 3x1,5mm²
Small RD : 2x1mm² - 2x1,5mm²
Medium HF : 3x1mm² - 3x2,5mm²
Medium RD : 2x1mm² - 2x2,5mm²
Large : 5x1,5mm²
Remote DALI-2 driver to be ordered separately.
▼ Cesar Amp Wall, small down
▼ Cesar Amp Wall, small up&down
▼ Cesar Amp Wall, medium down
▼ Cesar Amp Wall, medium up&down
▼ Cesar Amp Wall, large down
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
CESAR AMP L DWN 1L927MB HFX BK | 34 | 2400 | LED | 8.20 | 96700107 | ||||
CESAR AMP L DWN 1L927MB HFX WH | 34 | 2400 | LED | 8.20 | 96700106 | ||||
CESAR AMP L DWN 1L927MBHFX ANT | 34 | 2400 | LED | 8.20 | 96700109 | ||||
CESAR AMP L DWN 1L927MBHFX GY | 34 | 2400 | LED | 8.20 | 96700108 | ||||
CESAR AMP L DWN 1L930MBHFX ANT | 34 | 2537 | LED | 8.20 | 96700117 | ||||
CESAR AMP L DWN 1L930MBHFX BK | 34 | 2537 | LED | 8.20 | 96700115 | ||||
CESAR AMP L DWN 1L930MBHFX GY | 34 | 2537 | LED | 8.20 | 96700116 | ||||
CESAR AMP L DWN 1L930MBHFX WH | 34 | 2537 | LED | 8.20 | 96700114 | ||||
CESAR AMP L DWN 1L940MBHFX ANT | 34 | 2611 | LED | 8.20 | 96700113 | ||||
CESAR AMP L DWN 1L940MBHFX BK | 34 | 2611 | LED | 8.20 | 96700111 | ||||
CESAR AMP L DWN 1L940MBHFX GY | 34 | 2611 | LED | 8.20 | 96700112 | ||||
CESAR AMP L DWN 1L940MBHFX WH | 34 | 2611 | LED | 8.20 | 96700110 |
▼ Cesar Amp Wall, large up&down
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
CESAR AMP L U/D 2L927FM HFX ANT | 69 | 4820 | LED | 10.33 | 96700121 | ||||
CESAR AMP L U/D 2L927FM HFX BK | 69 | 4820 | LED | 10.33 | 96700119 | ||||
CESAR AMP L U/D 2L927FM HFX GY | 69 | 4820 | LED | 10.33 | 96700120 | ||||
CESAR AMP L U/D 2L927FM HFX WH | 69 | 4820 | LED | 10.33 | 96700118 | ||||
CESAR AMP L U/D 2L930FM HFX ANT | 69 | 5069 | LED | 10.33 | 96700129 | ||||
CESAR AMP L U/D 2L930FM HFX BK | 69 | 5069 | LED | 10.33 | 96700127 | ||||
CESAR AMP L U/D 2L930FM HFX GY | 69 | 5069 | LED | 10.33 | 96700128 | ||||
CESAR AMP L U/D 2L930FM HFX WH | 69 | 5069 | LED | 10.33 | 96700126 | ||||
CESAR AMP L U/D 2L940FM HFX ANT | 69 | 5216 | LED | 10.33 | 96700125 | ||||
CESAR AMP L U/D 2L940FM HFX BK | 69 | 5216 | LED | 10.33 | 96700123 | ||||
CESAR AMP L U/D 2L940FM HFX GY | 69 | 5216 | LED | 10.33 | 96700124 | ||||
CESAR AMP L U/D 2L940FM HFX WH | 69 | 5216 | LED | 10.33 | 96700122 |
