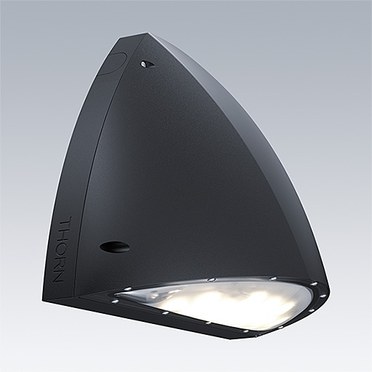

Piazza 3

A robust and adaptable IP65 outdoor wall mounted luminaire with a unique light distribution, ideal for building perimeter applications

• IDA Dark Sky Approved. *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures, +/- 10° maximum tilt only. Luminaires must be mounted as photometered.
• Unique photometrics with 3 metre forward light throw and 12 metre spacing - ideal for perimeter walkways. Excellent efficacy up to 130 lm/W.
• Complete with LCS LED technology with three lumen values (900/1600/2700lm) in colour temperature 2700K, 3000K and 4000K each, CS LED technology with colour temperature 2700K, 3000K and 4000K for HFIX version.
• Available in E3 and E3D, also compatible with Central Emergency System.
• Back mounted, BESA and surface mounted conduit compatible. Through Wiring possible except for HFIX and E3D.

Materials and Finish

Back-plate: EN-AC44300 die-cast aluminium painted anthracite (RAL7016)
Body: UV resistant polycarbonate In anthracite colour (RAL 7016)
Diffuser: UV resistant textured clear polycarbonate

Suitable for C5 (standard corrosion class according to ISO 9223 : 2012) without additional coating
