IQ Wave / IQ WAVE LED4100-840 BC Q597 MRE

96631044 / E7077577

Data Sheet

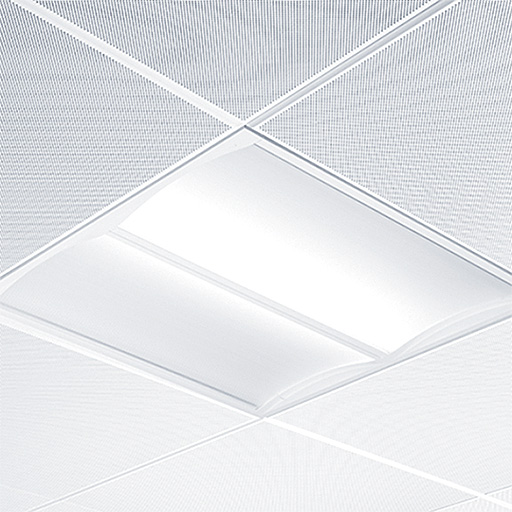

Recessed modular, direct LED luminaire. Electronic, dimmable control gear, Wireless connection via app with Bluetooth® 4.x - basicDIM Wireless , (installation in metal ceilings not allowed). Luminaire arrangement: Mobile control to luminaire max. 15 m, luminaire  to luminaire max. 4 m (centre). Class I electrical, IP44_IP20, IK03. Body: highly reflective steel. Frame and end caps: polycarbonate. Diffuser: polycarbonate with aluminium heatsink. Gear tray: powder coated white steel. Suitable for lay in or pull up (with accessory) installation. Complete with 4000K LED

Radio definition: basicDIM Wireless - Bluetooth® 4.x, Radio frequency: 2.4...2.483 GHz, Radio power: +4 dBm.

Dimensions: 597 x 597 x 97 mm
Luminaire input power: 40 W
Luminaire luminous flux: 4250 lm
Luminaire efficacy: 106 lm/W
Weight: 3.8 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:4250 lm
  • Luminaire efficacy*:106 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000655 LCA 50W 100-400mA one4all lp PRE
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:40 W Power factor = 0.92
  • Standby Power*:0.15 W
  • Dimming:BC
  • Radio definition: basicDIM Wireless - Bluetooth® 4.x
  • Radio frequency: 2.4...2.483 GHz
  • Radio power: +4 dBm
  • Maintenance category CIE 97:C - Closed Top Reflector
  • Total harmonic distortion (THD):9.00 %
  • LED
  • CE
  • ENEC11
  • GLedReP
  • 650°
  • IK03
  • IP44_IP20
  • LLedNr
  • Electrical class I
  • Ta= -20 to +25
